Fast, Quiet, Powerful

Welcome to our Best Gaming Workstation PC Build Under $1,500 build guide! In this article, we’ll be showing you all the components you’ll need to put together a workstation that can not only handle serious work, but also play as well.

This gaming workstation build today will be focused on building a PC that can comfortably handle games at 1080p or 1440p as well as handle workstation duties such as photo editing, video editing, 3D modeling, video encoding, CADD and more. For this build, we’ve set a budget of $1,500 to create an excellent gaming workstation build that’s not only fast, powerful and quiet, but also within budget as well.

Let’s see how we did!


Best Gaming Workstation Build Components – Budget: $1,500

CPU [easyazon_link identifier=”B01MXSI216″ locale=”US” tag=”cupcre06-20″]Intel Core i7-7700K[/easyazon_link]
Motherboard   [easyazon_link identifier=”B01NGTYV2Q” locale=”US” tag=”cupcre06-20″]ASUS Prime Z270-A[/easyazon_link]
Memory   [easyazon_link identifier=”B0134EW7G8″ locale=”US” tag=”cupcre06-20″]Corsair Vengeance LPX 16GB (2x8GB) DDR4 Kit[/easyazon_link]
GPU [easyazon_link identifier=”B01IEKYD5U” locale=”US” tag=”cupcre06-20″]MSI GeForce GTX 1060 GAMING X 6G[/easyazon_link]
Case [easyazon_link identifier=”B01NALAFU9″ locale=”US” tag=”cupcre06-20″]Phanteks Eclipse Series P400S Silent Edition with Tempered Glass[/easyazon_link]
Boot Drive [easyazon_link identifier=”B00OBRE5UE” locale=”US” tag=”cupcre06-20″]Samsung 850 EVO 500GB[/easyazon_link]
PSU   [easyazon_link identifier=”B00EON40CS” locale=”US” tag=”cupcre06-20″]EVGA 600 B1 80+ Bronze 600W[/easyazon_link]
CPU Cooler   [easyazon_link identifier=”B005O65JXI” locale=”US” tag=”cupcre06-20″]Cooler Master Hyper 212 EVO[/easyazon_link]
OS   [easyazon_link identifier=”B01019T6O0″ locale=”US” tag=”cupcre06-20″]Windows 10 Home[/easyazon_link]
Buy This Build


Core Component Details

CPU – Intel Core i7-7700K

The Intel Core i7-7700K is currently the latest flagship mainstream Intel processor and is the processor of choice for our $1,500 gaming workstation build.

Featuring Kaby Lake 14nm FinFET architecture, the Intel Core i7-7700K is a powerhouse of a processor, packing four cores with Hyper-Threading technology allowing it to process up to eight threads simultaneously. Clock speeds on the Intel Core i7-7700K starts at a base frequency of 4.2GHz with a turbo of up to 4.5GHz.

Additionally, the Intel Core i7-7700K is also a K SKU processor, which features an unlocked multiplier for additional performance with overclocking. As we outfitted the build this month with the aftermarket Cooler Master Hyper 212 EVO cooling solution, depending on the overclocking potential of the CPU, this could potentially yield an additional performance increase around 5-15% or more with a mild overclock.


Motherboard – ASUS Prime Z270-A

For the motherboard for our gaming workstation build, we decided to utilize the ASUS Prime Z270-A.

While the ASUS Prime Z270-A is an excellent motherboard for those looking to build gaming systems, it also has plenty of features for workstation users. Based on the Intel LGA 11551 socket, the ASUS Prime Z270-A features support for up to 64GB of DDR4 RAM. Expansion options include PCIe 3.0, USB 3, Thunderbolt 3, M.2, and Intel Optane Memory as well.

The ASUS Prime Z270-A also features ASUS’s 5-Way Optimization which will allow easy overclocking of the Intel Core i7-7700K processor featured in this build. This will allow those who have never done any sort of CPU overclocking an easy way to gain some additional performance.


Memory – Corsair Vengeance LPX 16GB (2x8GB) DDR4 Kit

When it comes to rock solid, stable, high performance memory, there aren’t many memory kits out there more highly recommended than Corsair.

For our gaming workstation build, we opted for a 16GB (2x8GB) DDR4 Corsair Vengeance LPX 2666MHz kit which is a perfect memory kit for this setup. Not only is the Corsair Vengeance LPX a low profile kit, meaning it won’t have any issues with cooler clearance, it’s also 8GB per DIMM which leaves two DIMMs free should the need to upgrade to 32GB arise.


Graphics Card – MSI GeForce GTX 1060 GAMING X 6G

As a gaming workstation build with a budget, we decided to put more emphasis on the CPU and RAM as these are typically more heavily used in productivity applications such as photo editing, video editing, video encoding, 3D modeling, CADD, and more.

However, despite putting a significant amount of the budget towards the CPU, we were still able to opt for the MSI GeForce GTX 1060 Gaming X 6G as it’s able to stay within budget, yet provide excellent performance for 1080p or 1440p gaming at medium to high settings. Those who want a bit more performance can upgrade to the ASUS GeForce GTX 1080 8GB ROG STRIX which will be necessary for those who want good performance with monitors with faster refresh rates such as 144Hz gaming monitors, gaming at 4K resolutions, or VR gaming.

Those interested in strictly using the system for work rather than play are highly recommended to go with a true workstation graphics card such as the Nvidia Quadro or AMD Radeon Pro graphics. These professional class graphics cards have drivers specifically coded to work with professional applications which means more optimized performance compared to a consumer oriented card.

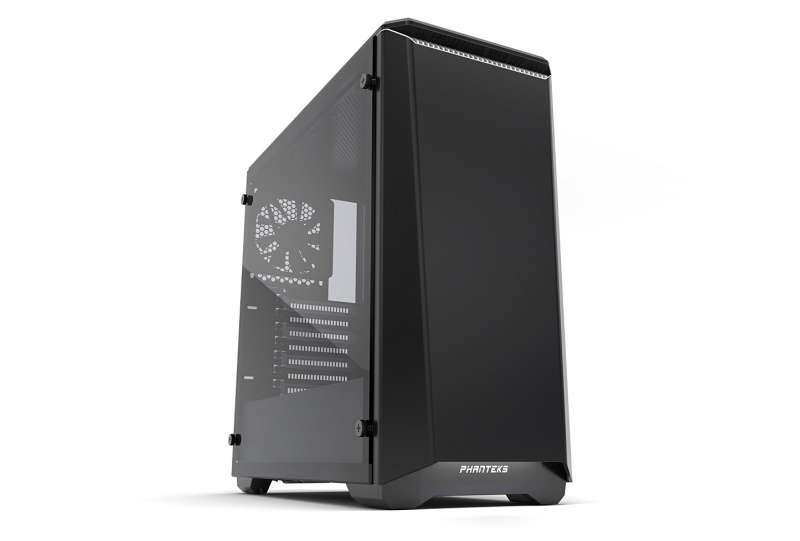

Case – Phanteks Eclipse Series P400S Silent Edition with Tempered Glass

Workstations are designed for work, but that doesn’t mean they can’t be pretty. As such, we decided to go with the Phanteks Eclipse Series P400S Silent Tempered Glass Edition for our $1,500 gaming workstation build.

Back at CES this year, we had a chance to be one of the first to check out the Phanteks Eclipse Series P400S Silent and it was a case we were very impressed with. Featuring plenty of expandability options, tool-less design for easy building, sound dampening to reduce fan noise, and high quality materials, there’s really no better choice for a quiet gaming workstation build than the Phanteks P400S Silent. However, with the recent introduction of the P400S Tempered Glass Edition, Phanteks has proved that there is a better choice out there with the same features as the P400S, except with a beautiful tempered glass sidepanel to match.


Storage – Samsung 850 EVO 500GB

Typically on a workstation build under $2,000, one of our main recommendations is a combination of a small, fast SSD with a large traditional HDD. This way we get both the high performance of a SSD while also getting the high capacity/low cost benefit of HDDs.

However, with SSD prices now becoming more and more affordable, we’re able to fit a Samsung 850 EVO with 500GB of capacity into the budget, allowing super fast SSD performance for not only applications, but data as well. Of course if that’s not enough and given you have the budget for it, the Samsung 850 EVO is also the only consumer SSD on the market that features up to 4TB of capacity.

Those who need additional capacity yet don’t have much of a budget to work with can also opt for the slower traditional HDD in addition to the recommended SSD or as a complement to a lower capacity SSD. An excellent choice for a HDD for this application is the Western Digital Black which offers good performance, high capacities and a five year warranty for peace of mind.


Optional Components

Some readers have expressed interest in monitor, speaker, mice and keyboard suggestions, so we’ve also started including some recommendations for these items as well. I won’t be explaining the choices as these optional components are quite dependent on the purpose of PC (For example, someone serious about audio may end up going with something like an Audioengine 5+ paired with an ASUS Xonar Essence STX), but here are some suggestions that are a good fit for this build based on the system’s budget and intended purpose.

Monitor ASUS PB278Q 27″ WQHD Monitor
Sound Card Creative Sound Blaster ZxR
Speakers Audioengine A5+
Headphones Beyerdynamic DT990
Microphone Blue Yeti – Blackout Edition
Mouse Razer DeathAdder Chroma
Keyboard Razer BlackWidow Chroma V2



Questions? Thoughts? Let us know!

Remember, if you have any questions, need some help, or need to fit the build into your budget please feel free to post all questions in the community forums! For more immediate assistance, feel free to drop by our community Discord as well. If you spot any issues with our build such as GPU/case incompatibilities, cooler/case incompatibilities, etc. please let us know as well so we can update the article.
