Sapphire HD 7750 1GB Low Profile Review

Sapphire HD 7750 1GB Low Profile Review

Sam ChenAugust 30, 2012

Low Profile’s Finally Got Game

A little while back, we reviewed the Sapphire HD 7770 Vapor-X, which was a custom designed Sapphire card designed to give budget gamers excellent performance for under $150. Today, we’ll be reviewing another Sapphire card that was recently introduced, the Sapphire HD 7750 1GB Low Profile.

Now the Radeon HD 7750 isn’t exactly a new graphics card as it’s been out for quite a while and we’ve actually reviewed the HIS HD 7750 all the way back in February, but today we’ll be reviewing the low profile edition of the Sapphire 7750, which is designed to be used in small form factor PCs such as HTPCs for example.

In terms of specifications, the Sapphire HD 7750 1GB Low Profile is pretty much all reference, so it’s got 512 stream processors, 1GB GDDR5 running off a 128 bit memory interface, 16 ROPs, 40 TUs, and a clock speeds of 800MHz core / 1125 MHz memory. This also means that performance wise, we should see results identical to what we saw from the full sized reference HD 7750, except in a smaller package.


AMD Radeon HD 7750 Sapphire HD 7750 LP
Fabrication 28nm 28nm
Core Clock 800MHz 800MHz
Stream Processors 512 512
Texture Units 40 40
ROPs 16 16
Buffer Size 1GB GDDR5 1GB GDDR5
Memory Interface 128-bit 128-bit
Memory Frequency 1125MHz (4.5 GHz Effective) 1125MHz (4.5 GHz Effective)

A Closer Look at the Sapphire HD 7750 1GB Low Profile

Sapphire’s packaging looks pretty cool even though the  HD 7750 1GB Low Profile is meant to be used in smaller form factor PCs such as HTPCs or MiniPCs.

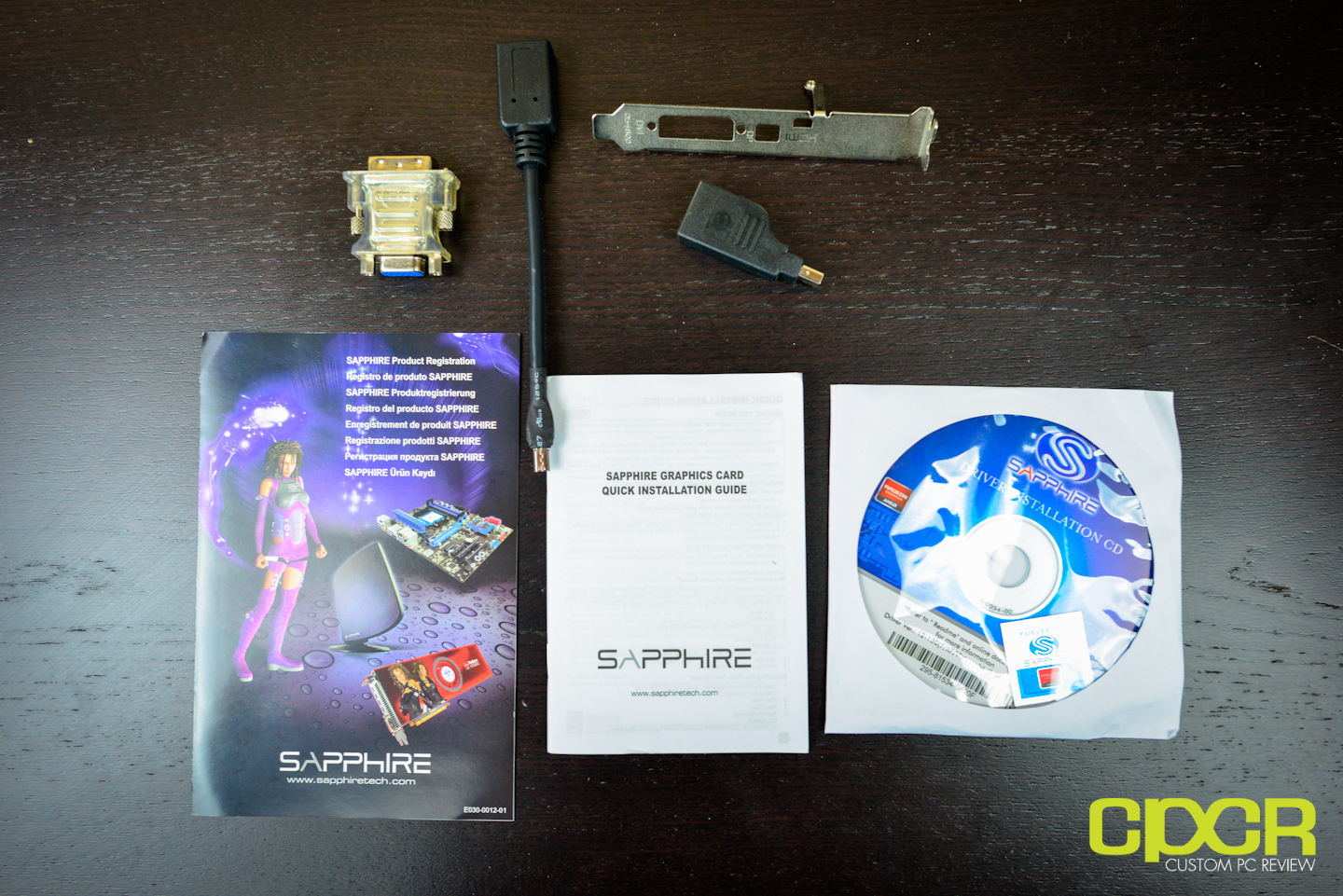

Inside we get more accessories than usual. Along with the documentation and the driver disk, we get a VGA to DVI adapter, a mini-HDMI to HDMI adapter, a mini Display Port to Display Port adapter, and a full size expansion slot bracket.

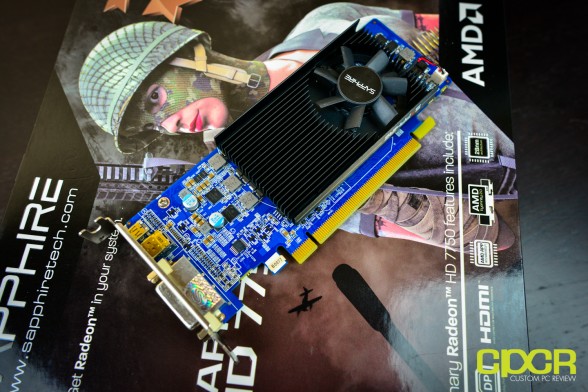

With accessories out of the way, let’s take a look at the HD 7750 Low Profile itself. As this card is designed to fit into small form factors such as the mITX formfactor, it’s very small. Sapphire has gone with a blue PCB and a very small, single slot heatsink.

Sapphire chose to use quite a small heatsink on this graphics card, but the HD 7750 runs fairly cool, so it shouldn’t be an issue. Remember, the HD 7750 does not require external PCIe power. All power needed is delivered through the PCIe slot.

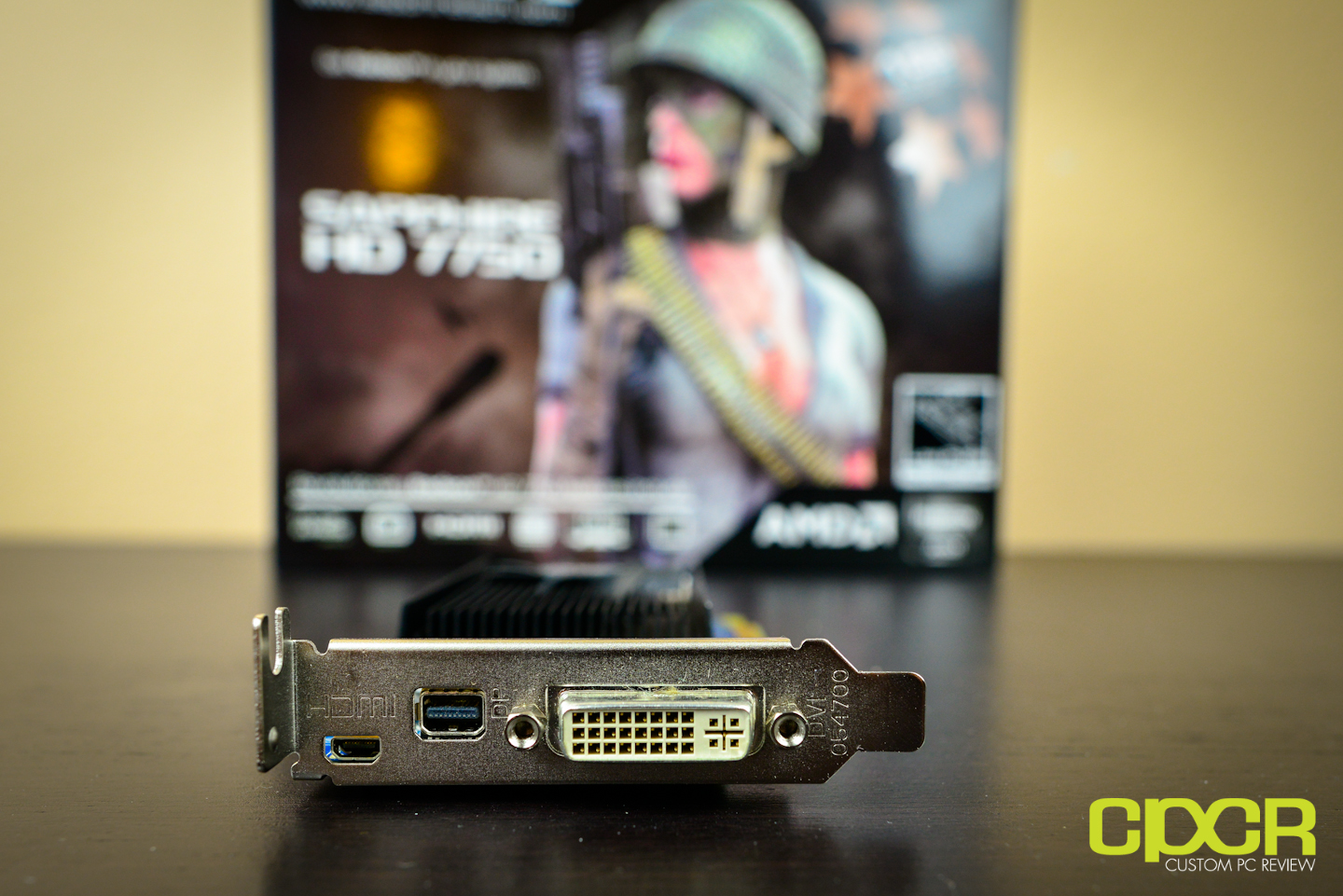

Sapphire has included the perfect mix of outputs here with DVI out, mini-HDMI out, and mini-Display Port out.

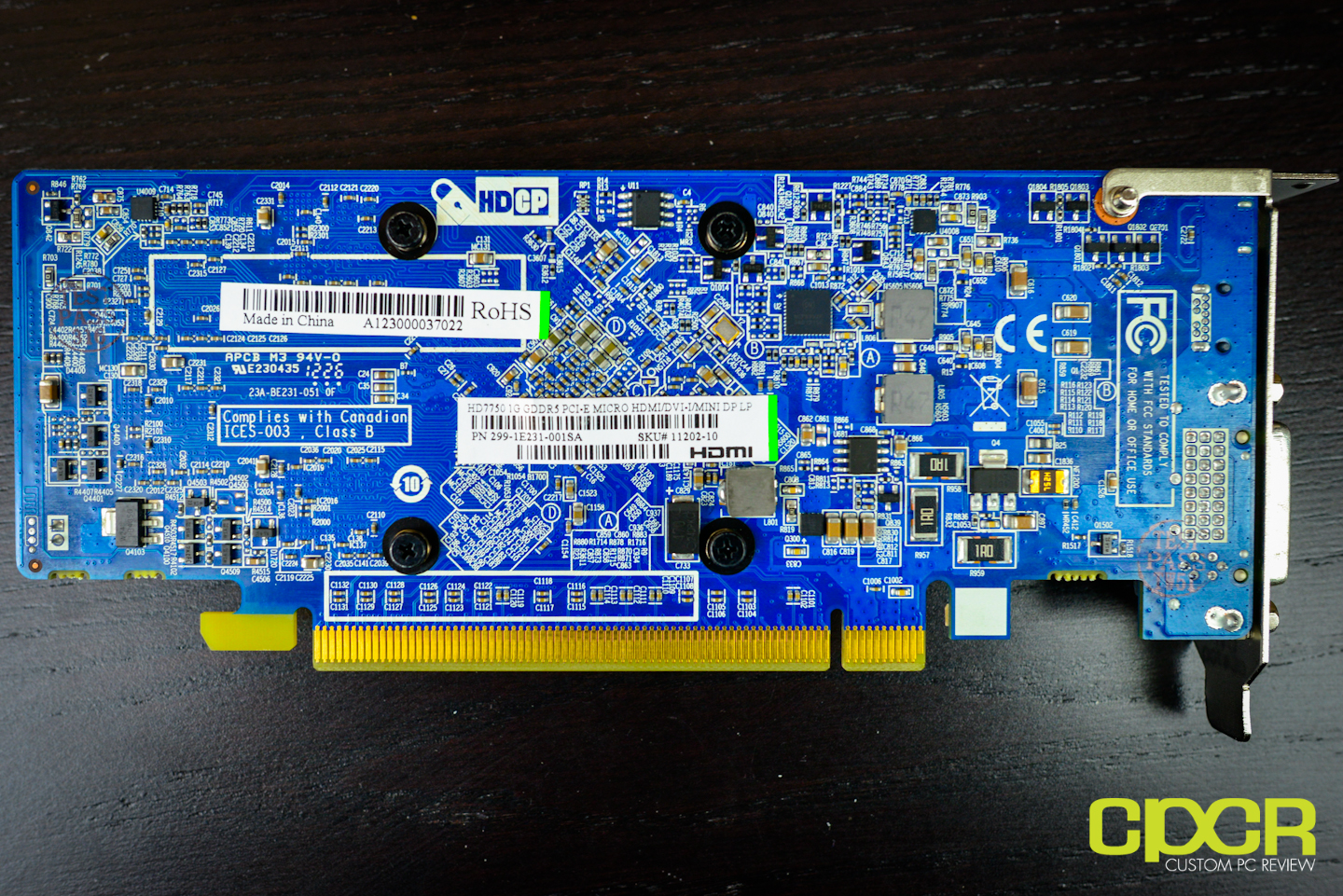

Unlike full sized HD 7750 graphics cards, the Sapphire HD 7750 Low Profile has a lot of stuff going on in the back of the PCB.

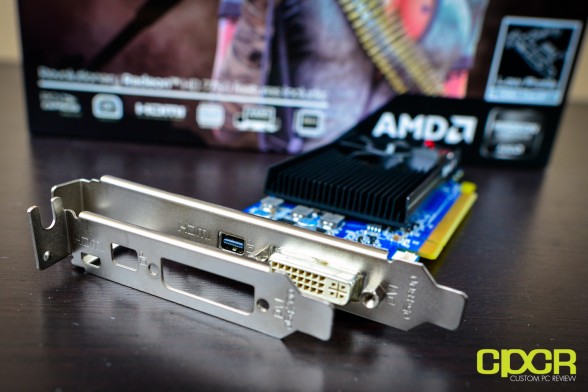

For those who want to use the HD 7750 Low Profile with a case with full sized expansion slots, Sapphire has included a full sized expansion slot adapter.

Sapphire HD 7750 Low Profile Performance

Testing Setup

Ivy Bridge Test Bench

Due to Ivy Bridge systems becoming much more mainstream these days, we’ve updated our older Sandy Bridge graphics testing system to our new Ivy Bridge test system with the specifications below. All graphics cards reviewed today have been retested on the new setup and scores from older graphics card reviews may no longer be used in direct comparison.

Since we’ve updated our test bench and our test suite, we decided to run a full suite of benchmarks on the Sapphire HD 7750 Low Profile despite results that should be identical to those off the HIS 7750 iCooler.

CPU Intel Core i5 3570K
Motherboard Gigabyte Z77X-UD3H
Memory Kingston HyperX Genesis 16GB DDR3 2133MHz
Graphics N/A
Boot Drive OCZ Vertex 4 128GB SSD
Storage Drive Western Digital Caviar Green 3TB
Power Supply Corsair HX650
Case HSPC High Speed Tech Station
Optical Drive ASUS OEM DVD Drive
Operating System Windows 7 Ultimate x64 SP1

Special thanks to GigabyteKingston, OCZ Technology and HSPC for sponsoring our test bench!

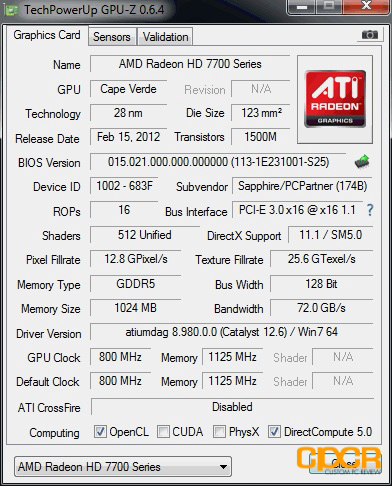

Initial Boot

Sapphire HD 7750 Low Profile Performance

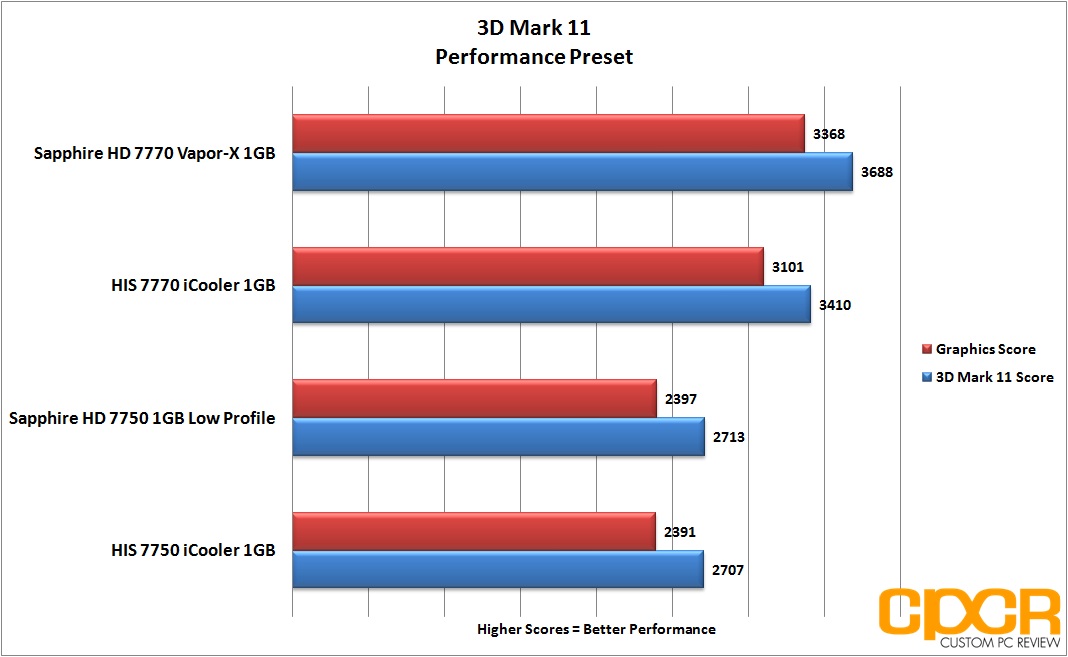

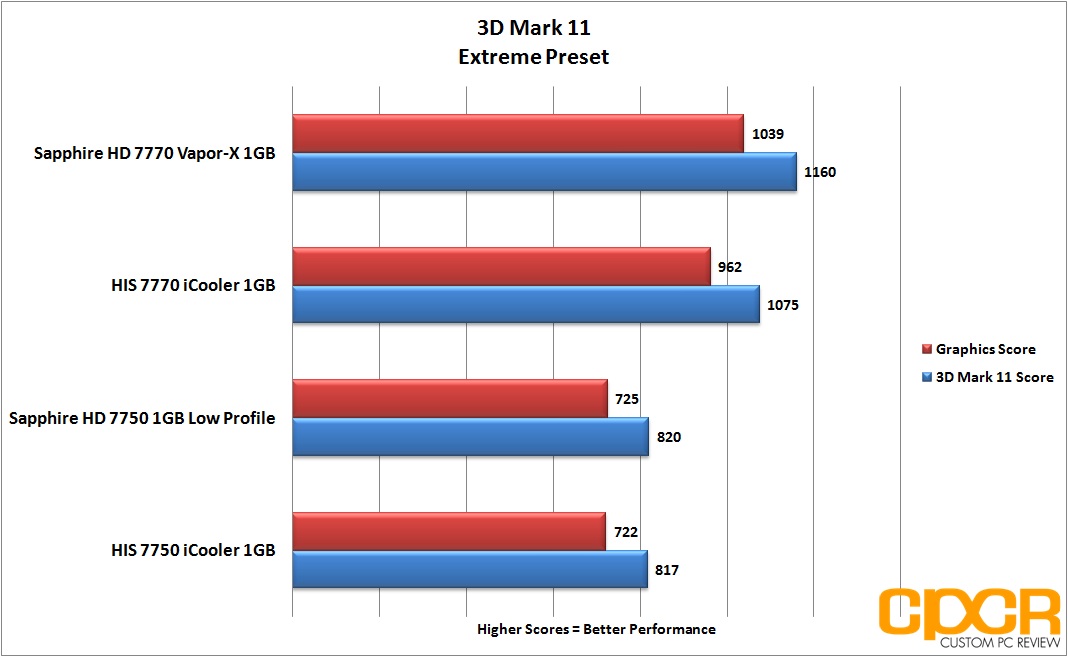

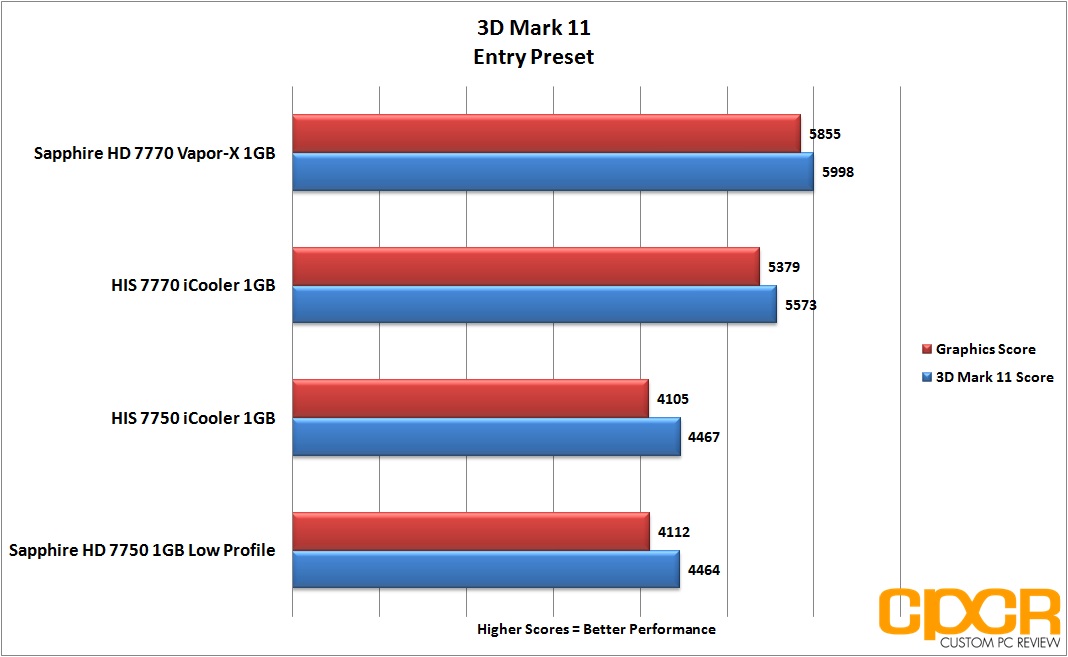

3D Mark 11

3D Mark 11 is an extremely popular benchmark designed by Futuremark for the sole purpose of stress testing a system’s graphics performance. Trusted by hardware enthusiasts and gamers world wide, 3D Mark 11 uses the latest features of DX11 to stress test graphics performance with consistent loads which simulate in game performance.

Sapphire HD 7750 Low Profile Performance

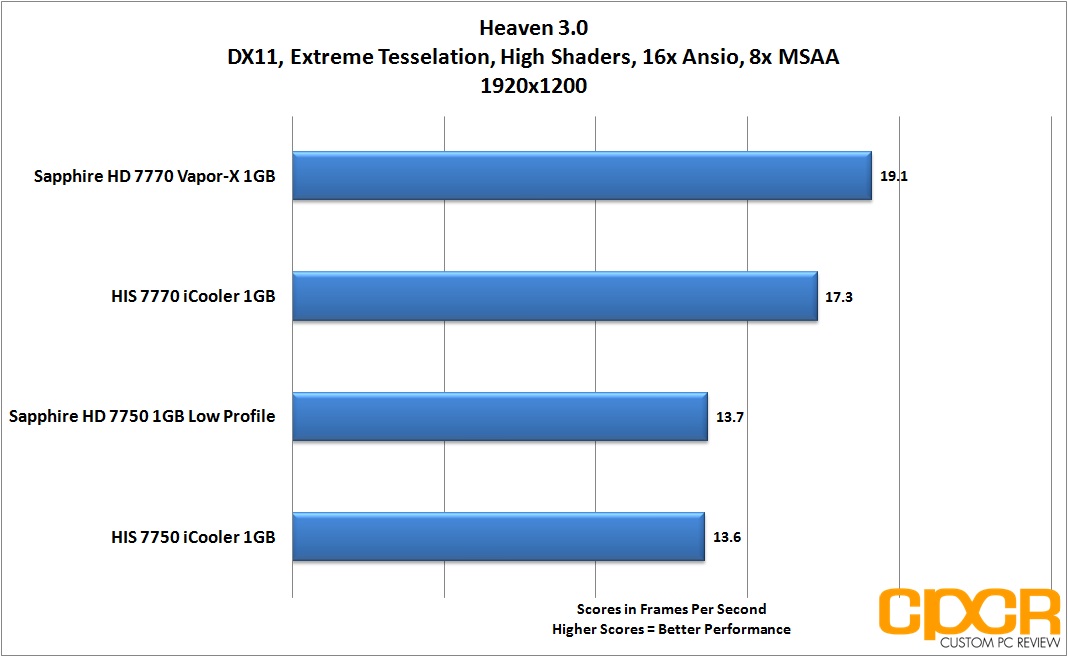

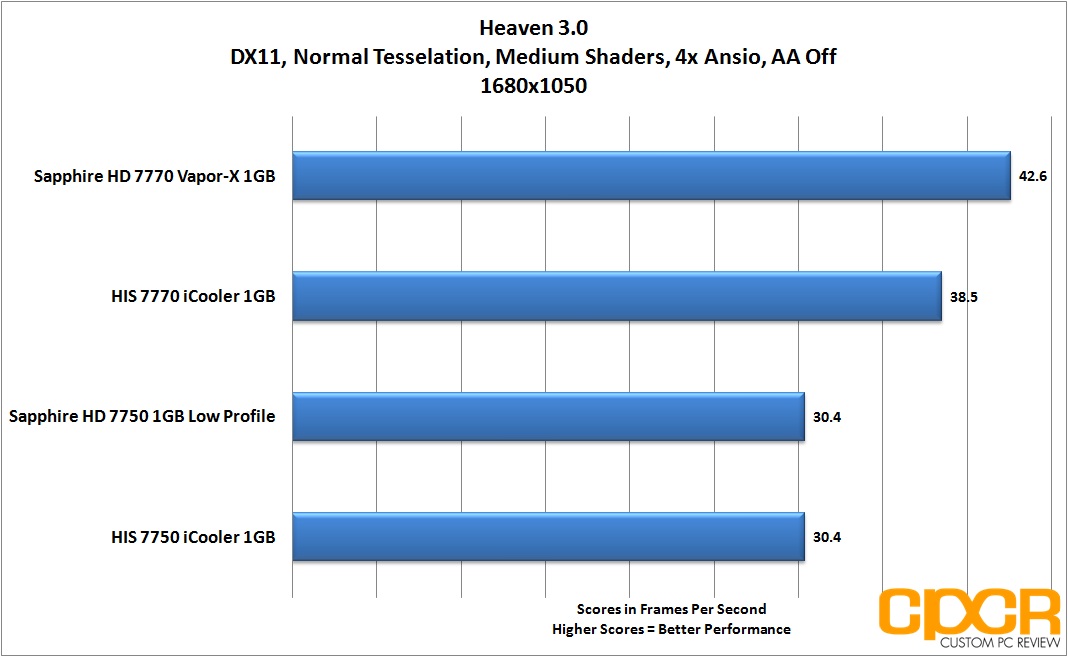

Unigine Heaven v3.0

Unigine Heaven is another DX11 benchmark that stresses the graphical processing capabilities of the GPU using the advanced UNIGINE engine.

Sapphire HD 7750 Low Profile Performance

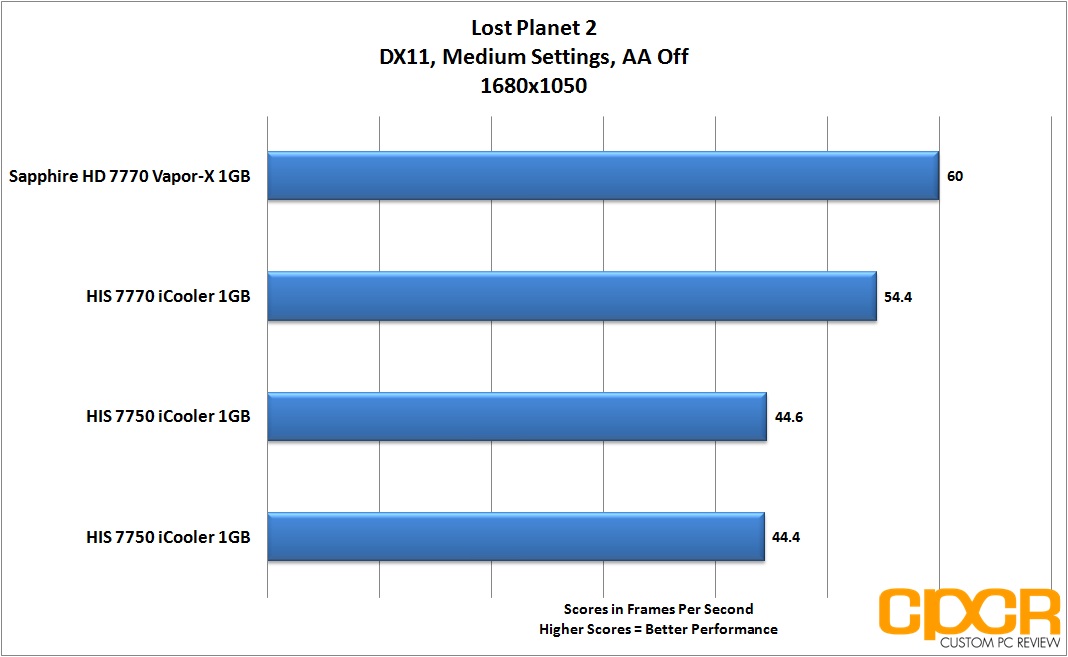

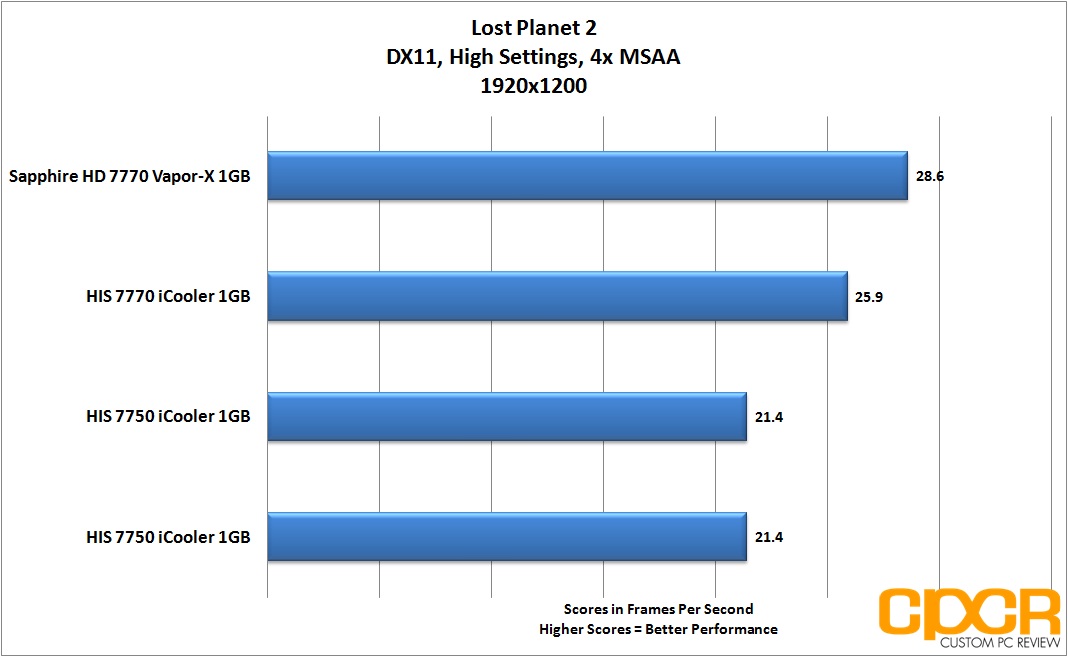

Lost Planet 2

Despite being released by Capcom in 2010, this third person shooter is still a staple in many gaming benchmark suites. Featuring a vast world, detailed environments, and stunning effects, Lost Planet 2 can still be more than a handful for even many of today’s gaming graphics cards.

For our benchmarking today, we’ll be using the “Test A” preset in the Lost Planet 2 benchmarking utility.

Sapphire HD 7750 Low Profile Performance

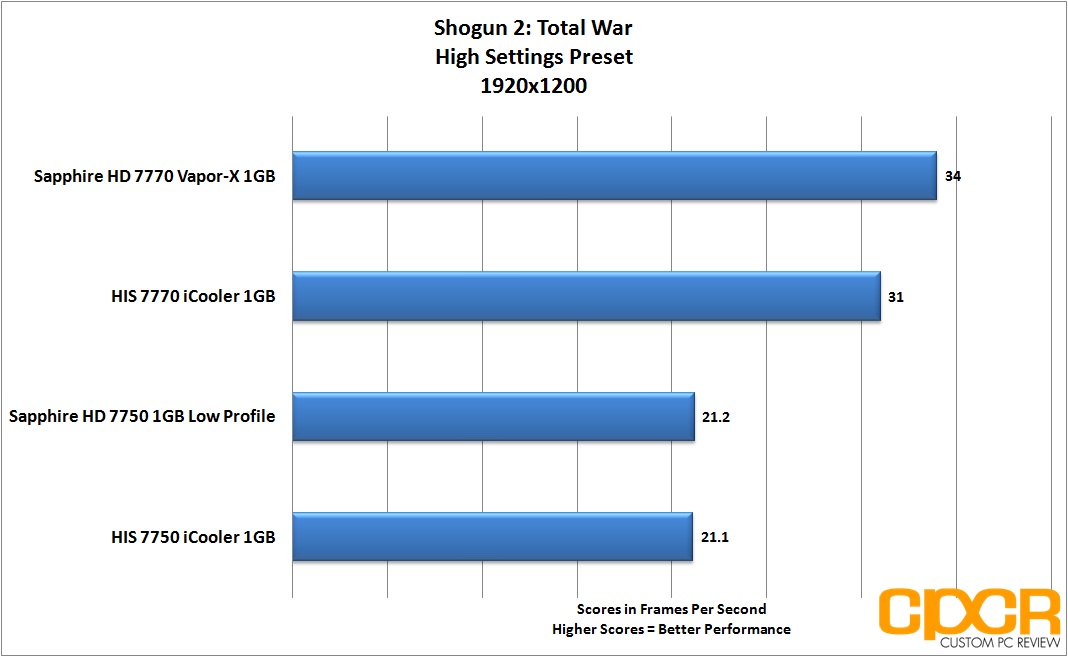

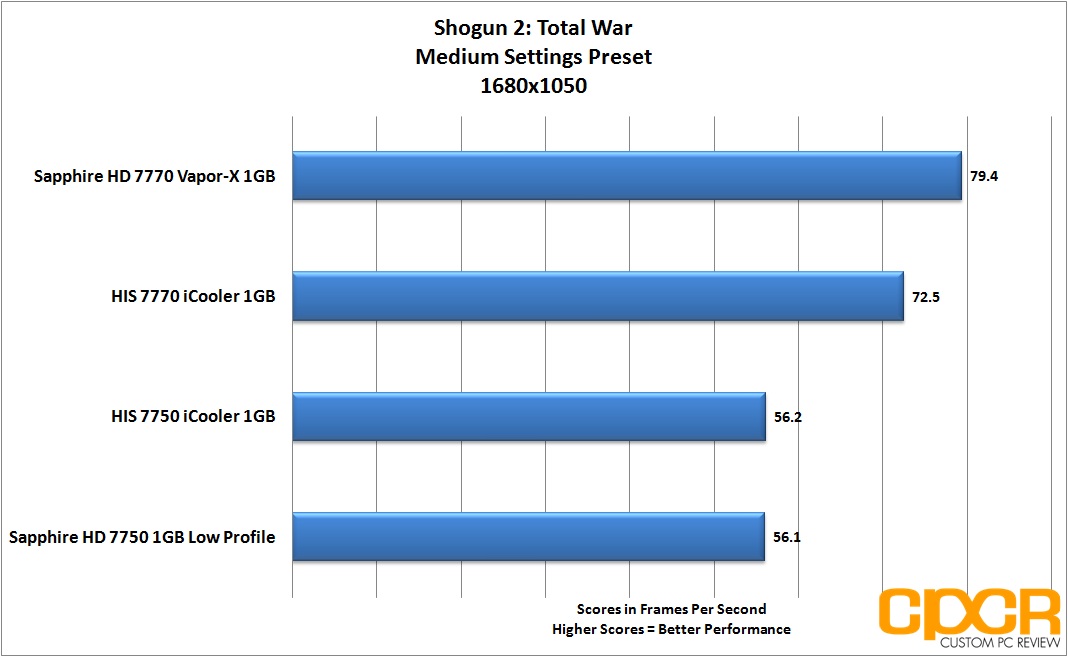

Shogun 2: Total War

Shogun 2: Total War is the most recent installment of the long running Total War series. Capable of using DX11’s features, it’s the perfect benchmark to test for the gaming performance. For our testing today, we’ll be using the Shogun 2: Total War benchmark utility.

Sapphire HD 7750 Low Profile Performance

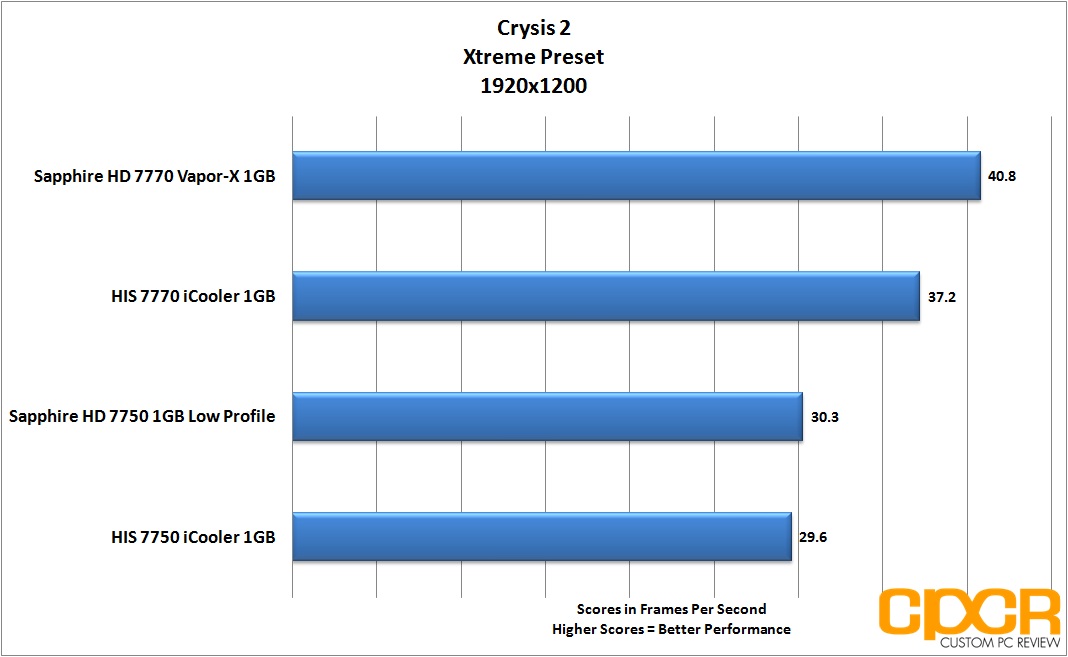

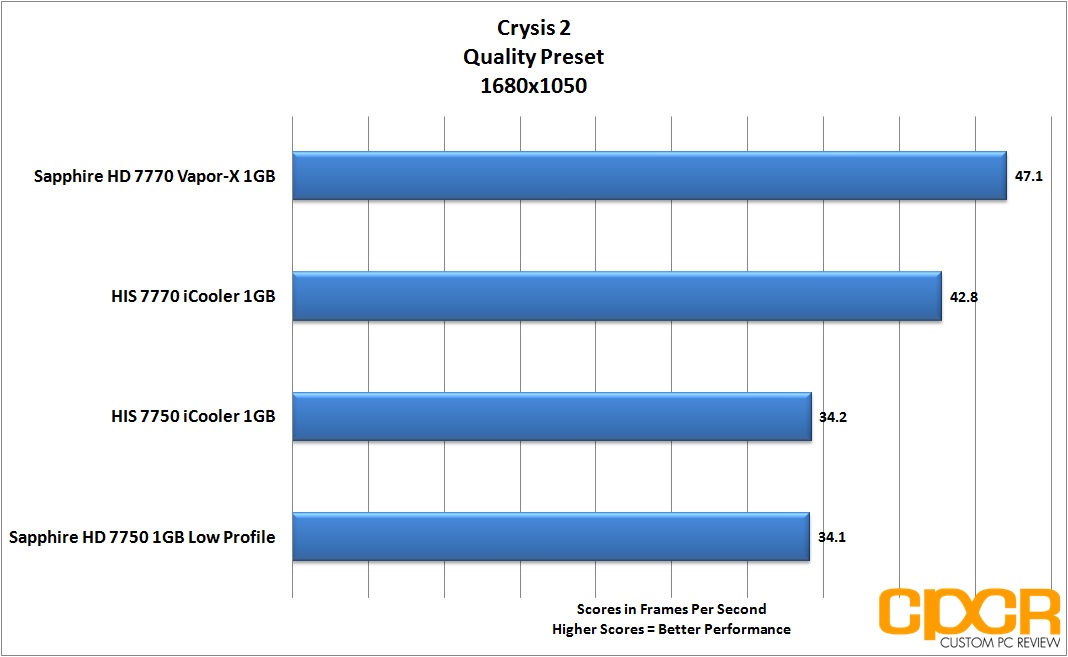

Crysis 2

As the successor to Crysis, which was hailed as the most graphically intensive game of all time when it was released in late 2007, Crysis 2 is less graphically demanding than its predecessor, but still one of the most graphically challenging games of all time.  You simply can’t take a step in Crysis 2 without stepping into some intense tessellation. Combined with rich lighting, insane physics, and oodles of post processing, Crysis 2 requires a ton of graphics muscle to run.

Today, we’ll be benchmarking Crysis 2 in the map “Central Park” with the Crysis 2 Benchmark Tool.

Sapphire HD 7750 Low Profile Performance

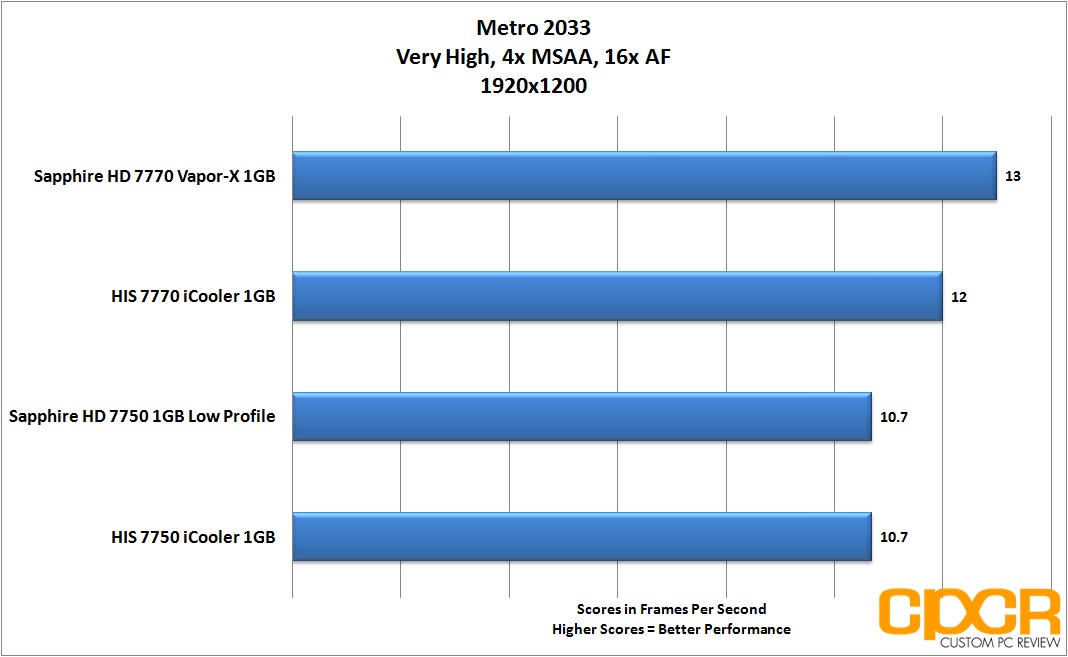

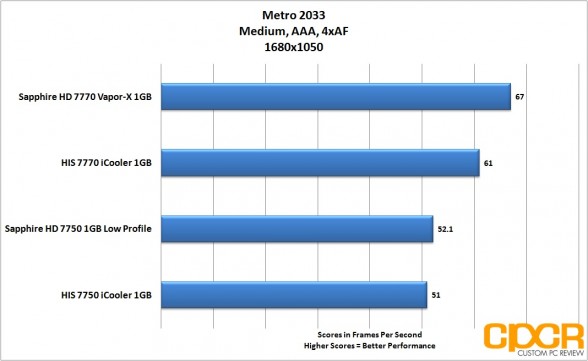

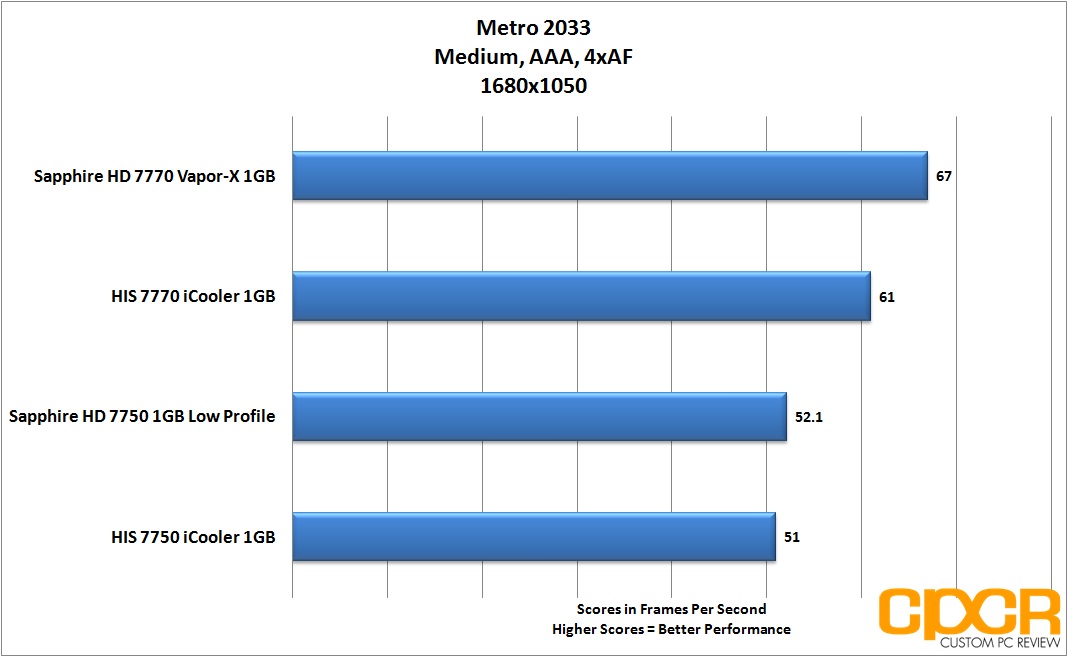

Metro 2033

Similar to Crysis 2, Metro 2033 is extremely tessellation intensive and fills the ranks as one of the most graphically intense games of all time.

Today, we’ll be benchmarking Metro 2033’s Frontline map using the Metro 2033 Benchmark Utility.

Sapphire HD 7750 Low Profile Performance

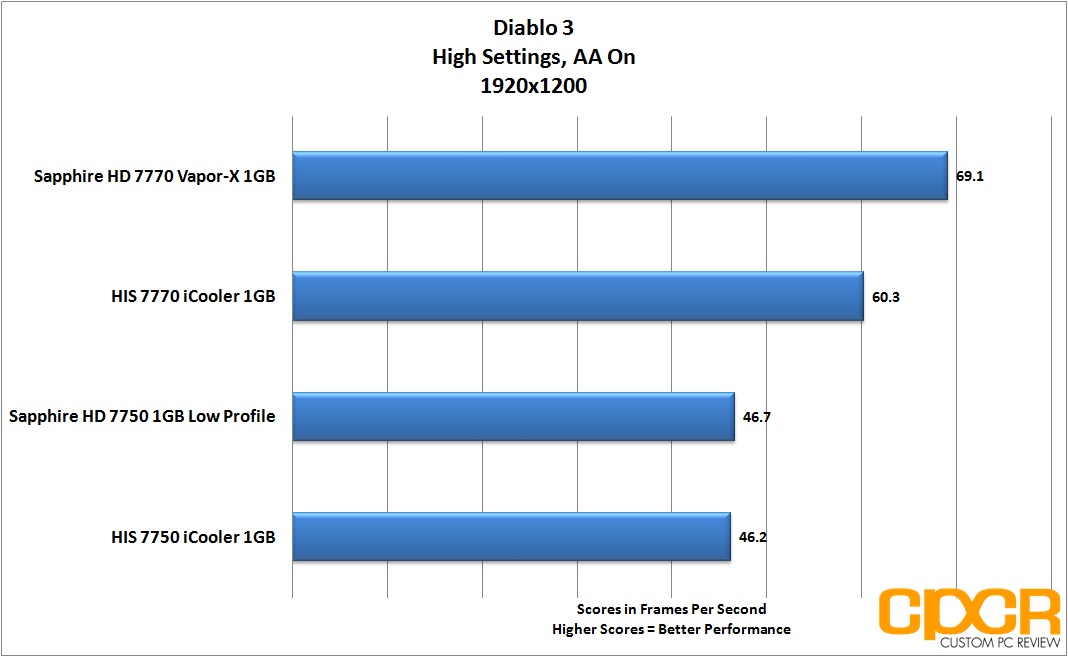

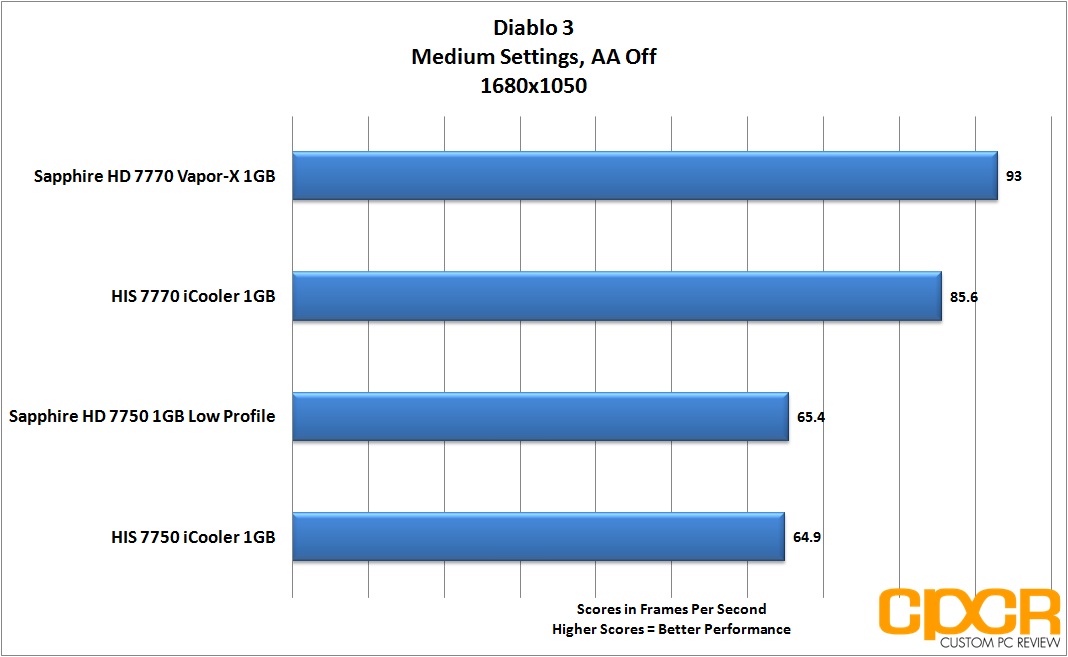

Diablo 3

After being released over a decade after its predecessor, Diablo 2, Diablo 3 launched as the fastest selling PC game of all time selling 3.5 million copies within the first 24 hours of its release, instantly crushing Blizzard’s servers at launch time. While Diablo 3 isn’t the most graphically intense game out there, it’s still an excellent benchmark due to its widespread popularity.

For our benchmarking today, we’ll be using FRAPS to record a 60 second benchmark while in game. Our benchmark is run in Act 4 Part 1 where we’ll be taking out the mini-Boss Istaku and his countless minions.

Sapphire HD 7750 Low Profile Performance

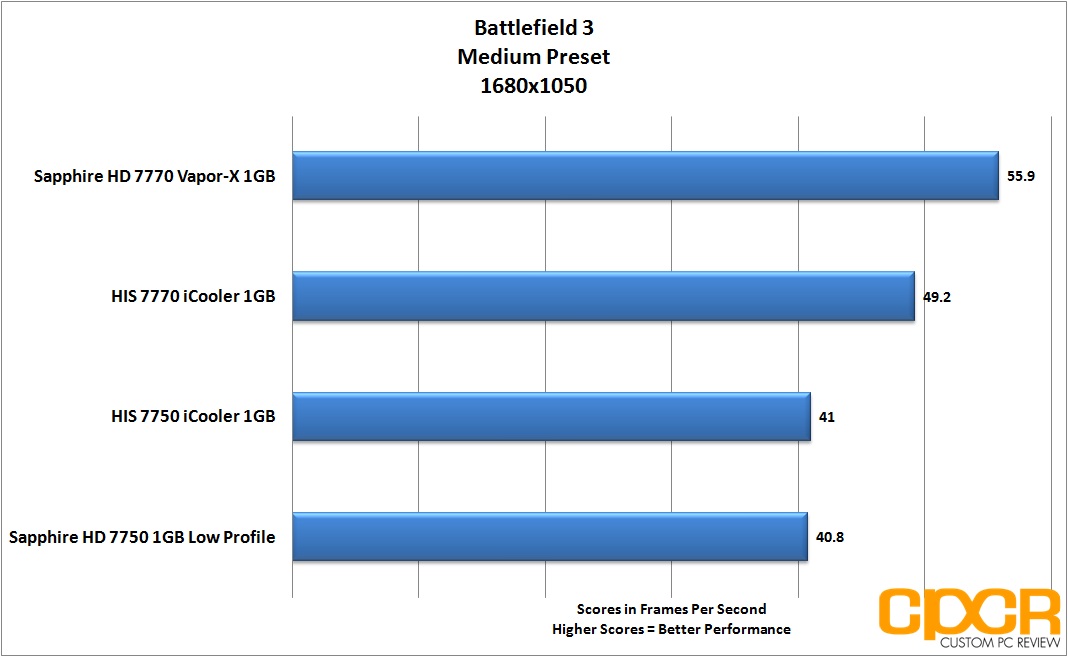

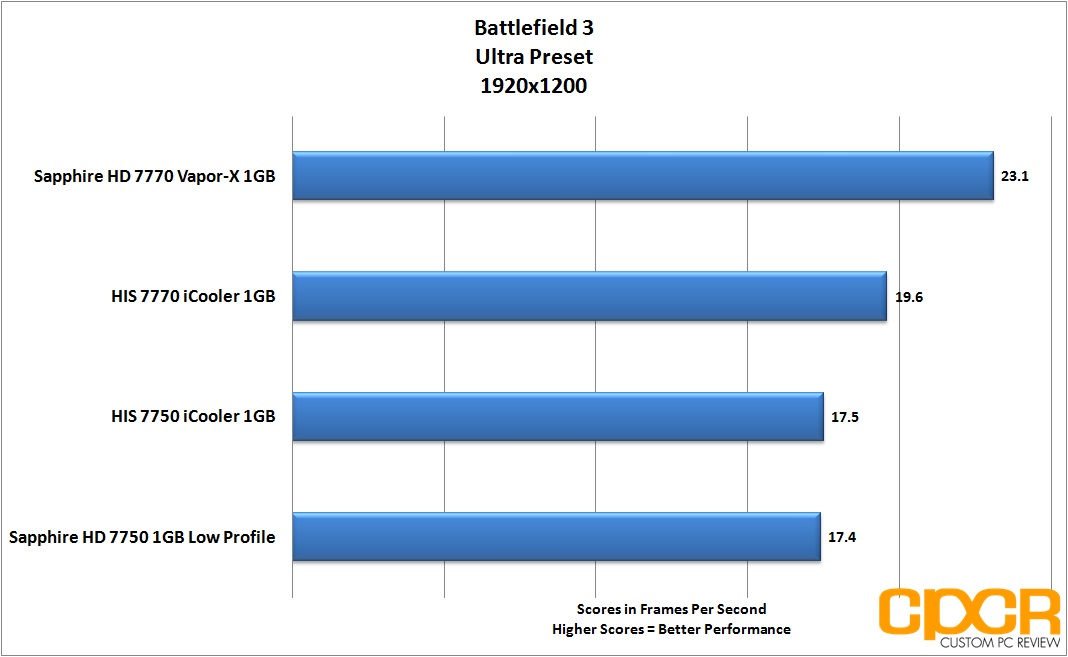

 Battlefield 3

Possibly one of the most highly anticipated FPS games of 2012, Battlefield 3 is currently one of the most graphically intensive games developed on the incredibly well crafted Frostbite 2 engine. With its detailed models, amazing physics, excellent use of shaders, and stunning effects, it easily makes it into our list of the best looking games ever created.

Our benchmark will be run in the map Operation Firestorm during the first fight scene. We’ll be using FRAPS to record a 60 second clip, which includes making this van up here explode.

Sapphire HD 7750 Low Profile Performance

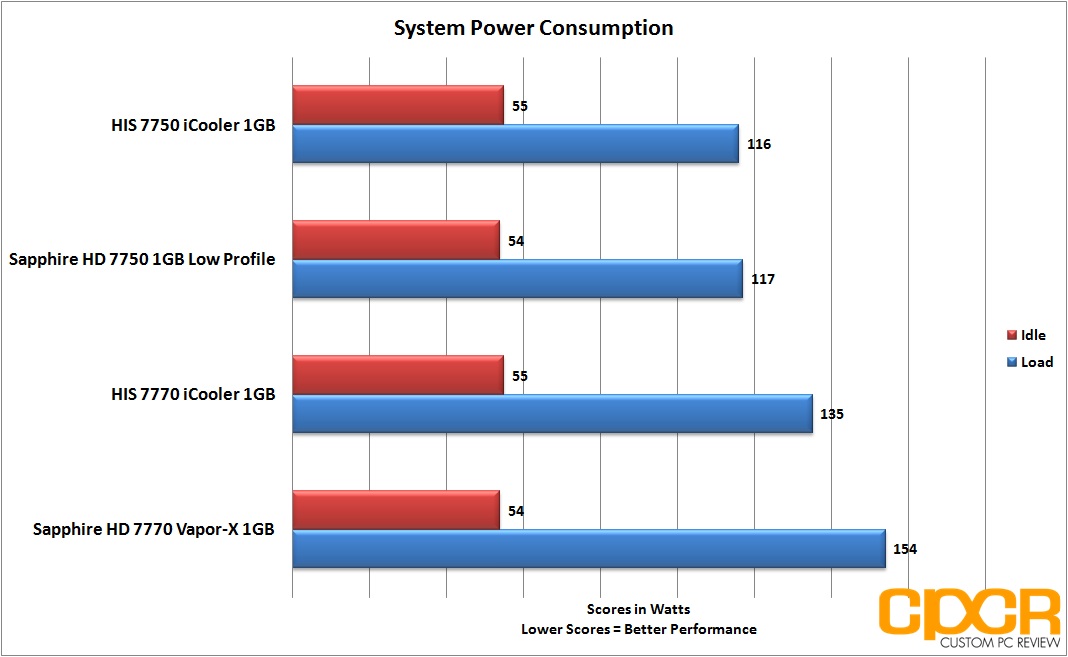

Power Consumption

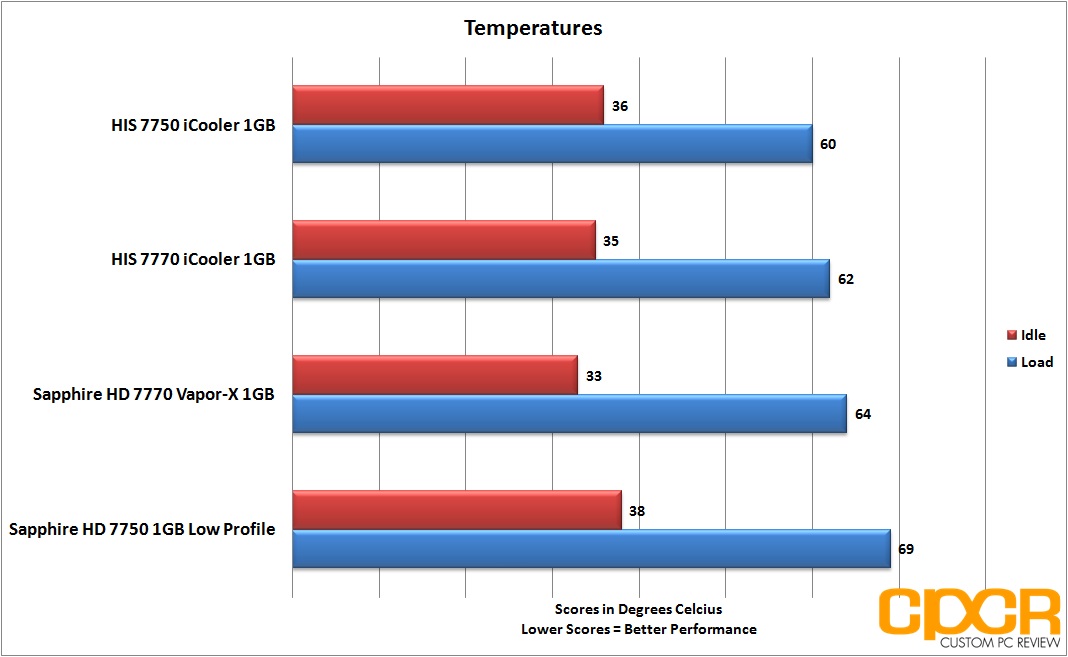

Temperature Testing

Sapphire HD 7750 Low Profile Overclocking

Overclocking performance was near identical to what we saw on the HIS 7750 iCooler. The Sapphire HD 7750 Low Profile was able to hit 890MHz core and 1175MHz memory, which is quite a significant overclock. Unfortunately, the card is locked for voltage, so there isn’t a whole lot of room for overclocking. That said, those looking to purchase this card probably isn’t looking to break overclocking records with it.

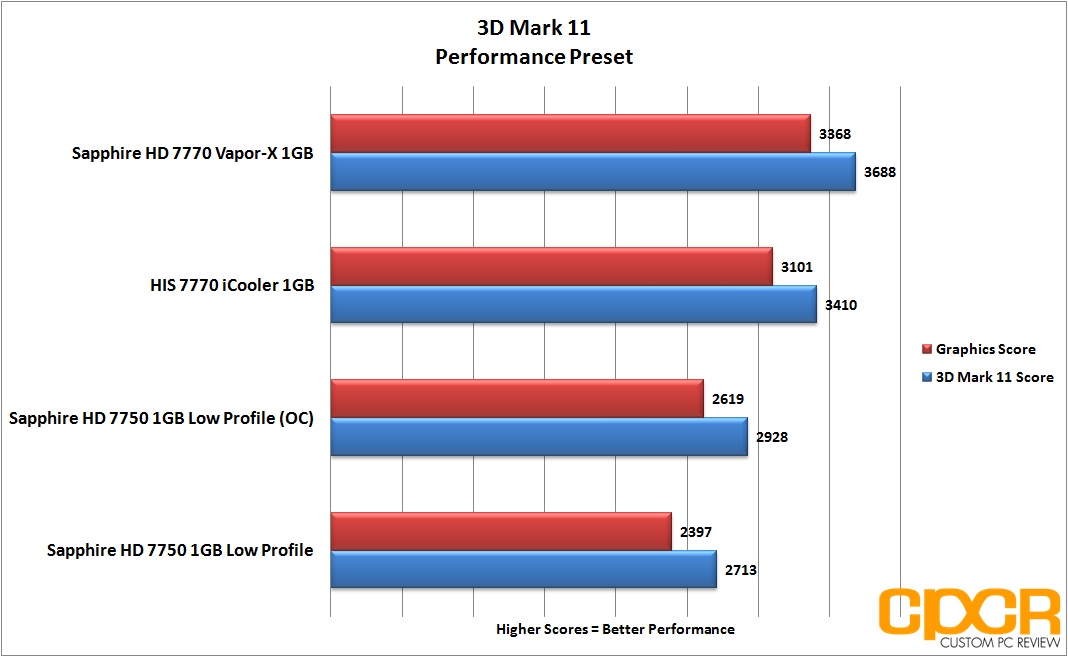

3D Mark 11 Performance

Performance wise, we’re looking at around an 8% increase, which isn’t too bad. This could mean a significant difference in some games that are borderline playable.

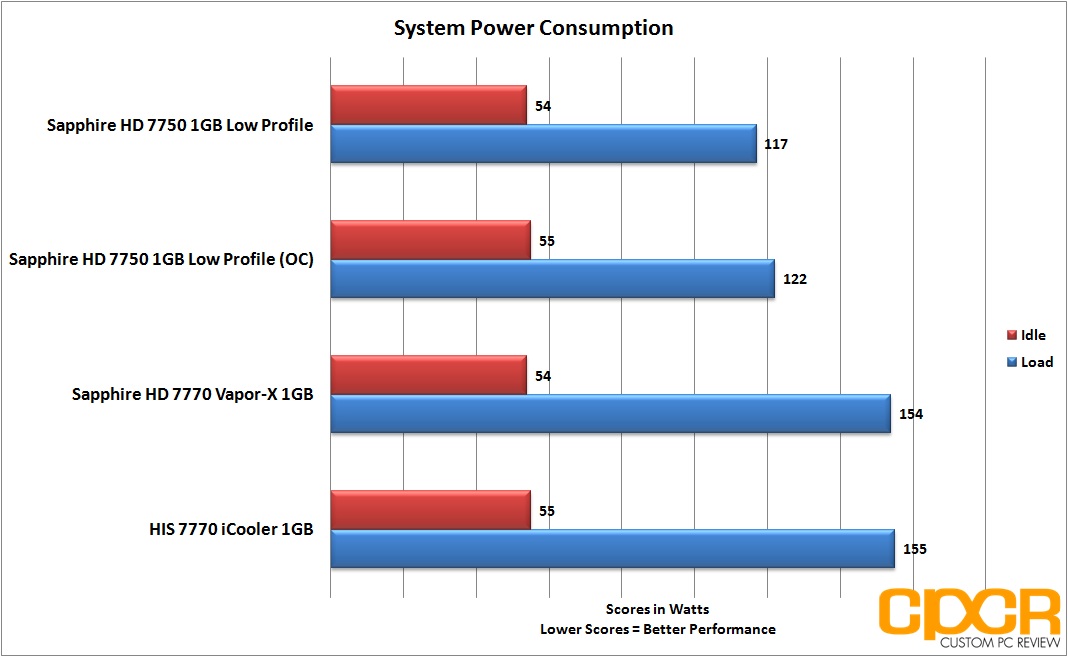

Power Consumption

Since there isn’t much opportunity to increase the voltage or external PCIe power, there isn’t much difference in power consumption. Our overclock only drew an additional 5w under load. Not bad.

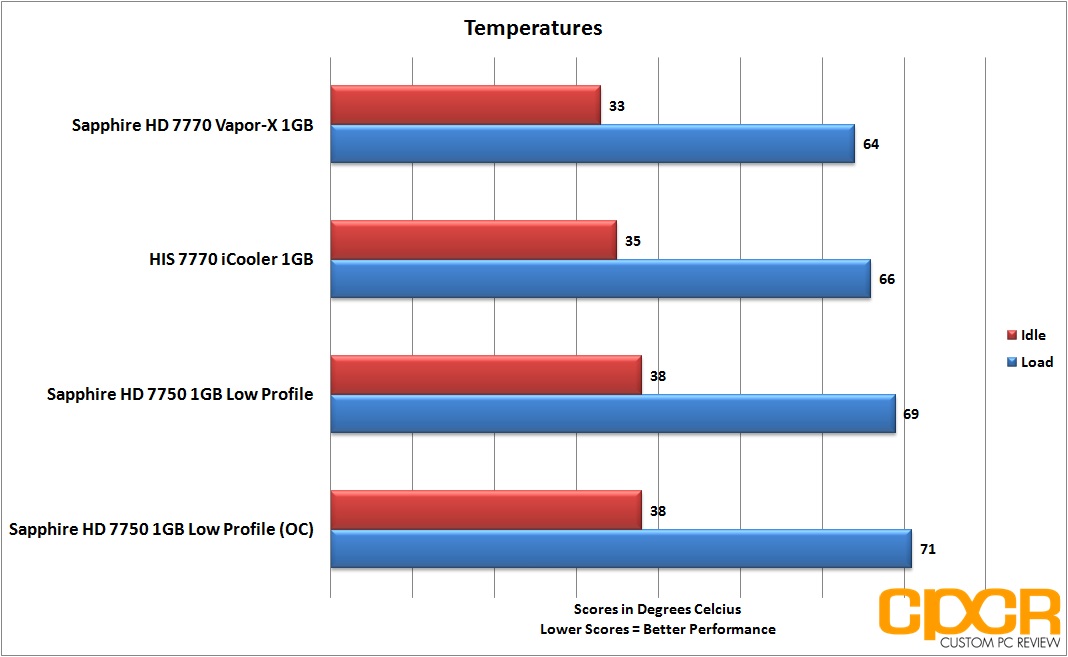

As expected, temperatures rose a bit after the overclocking pushing the Sapphire HD 7750 Low Profile slightly above 71ºC. 71ºC is fine. It’s not the end of the world. That said, the fan spun faster and got significantly louder as well. It seems like the fan is set to keep the graphics card under 70ºC.

Sapphire HD 7750 Low Profile Conclusions

Lately, the mini-ITX form factor has become quite popular with enthusiasts who want a powerful PC in a small form factor and while Intel’s latest Sandy Bridge and Ivy Bridge processors are pushing the boundaries in terms of CPU performance, GPU performance has been lagging. Prior to the HD 7750 Low Profile, the only options were last generation Radeon cards such as the HD 6570 or the HD 6670, or the Nvidia GT 640, all of which (to put bluntly) suck when it comes to gaming performance.

Now, I’m not saying that the HD 7750 is a card that’ll run every game at 1080p, max settings as it does have its limitations, but those who don’t mind playing games at 1680×1050 at medium settings can expect to play most games at acceptable framerates. Those who play less graphically intensive games such as Diablo 3 can even expect the Sapphire HD 7750 Low Profile to dish out very playable framerates at 1920×1200 on high settings. Need a new, portable mini-ITX LAN-box to play Diablo 3, Starcraft 2 or some League of Legends? Throw the Sapphire HD 7750 Low Profile in your new rig and you’ll be good to go.

Those looking to put the Sapphire HD 7750 Low Profile into a HTPC would also find the card an excellent choice as well. It’s extremely powerful, doesn’t draw a lot of power, and the fan noise is very minimal. However it’s worth a mention that Intel’s integrated graphics has gone a long way with the introduction of Intel’s newest HD 4000 graphics solution, which is more than capable of doing most HTPC duties. Additionally, all AMD APUs come with HD 6670 graphics as well, which will outperform Intel’s HD 4000 graphics solution. That said, those who still want the versatility of being able to play a couple more recent games on their HTPCs will find that the HD 7750 Low Profile is the best choice.

Current pricing on the Sapphire HD 7750 1GB Low Profile is $114.99 on Newegg, which puts it in the budget range for a graphics card. The lowest price for a full sized Radeon HD 7750 such as the Sapphire Radeon HD 7750 is currently $104.99 on Amazon, so the low profile edition of the card is going to cost a $10 premium over the standard Radeon HD 7750. That said, there aren’t really any options when you absolutely need low profile in order to fit a certain case, and still want to be able to play games.

Bottom Line

The Sapphire HD 7750 1GB Low Profile is currently the best choice for gamers who absolutely need a low profile graphics card.

Special thanks to Sapphire for making this review possible.

The Sapphire HD 7750 1GB Low Profile is currently available on Newegg.
