Seagate, Micron Jointly Launch S1200.2, S600DC Series SAS DataCenter SSDs
0

Seagate, Micron Jointly Launch S1200.2, S600DC Series SAS DataCenter SSDs

Sam ChenAugust 4, 2015

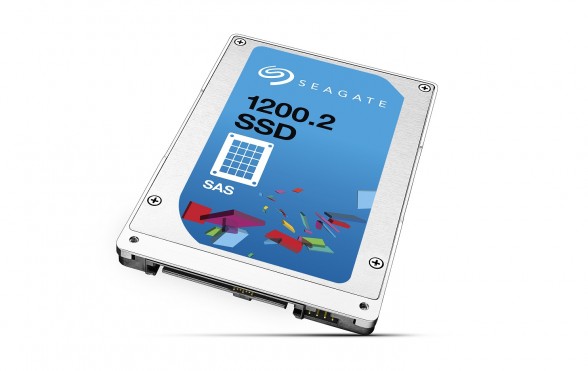

seagate-1200-2-sas-24gb-enterprise-ssd

After announcing their multi-year “strategic” partnership back in February of this year, Seagate and Micron is now reaping the fruits of their labor with a brand new SAS SSD designed for the enterprise market.

Marketed as the Seagate 1200.2 by Seagate and the Micron S600DC Series by Micron, the drives will utilize custom Seagate controller technology along with Micron’s MLC NAND.



Seagate 1200.2

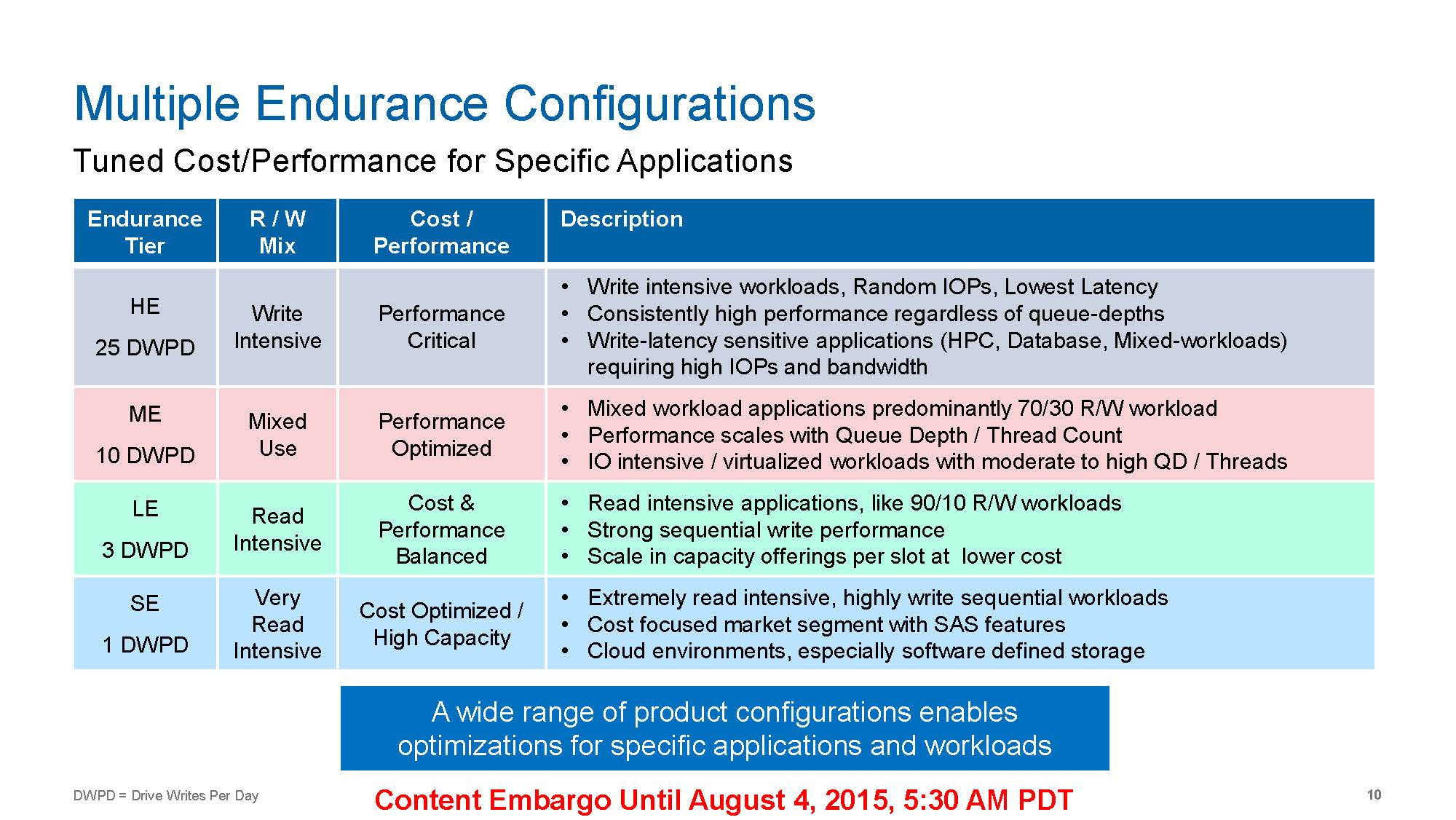

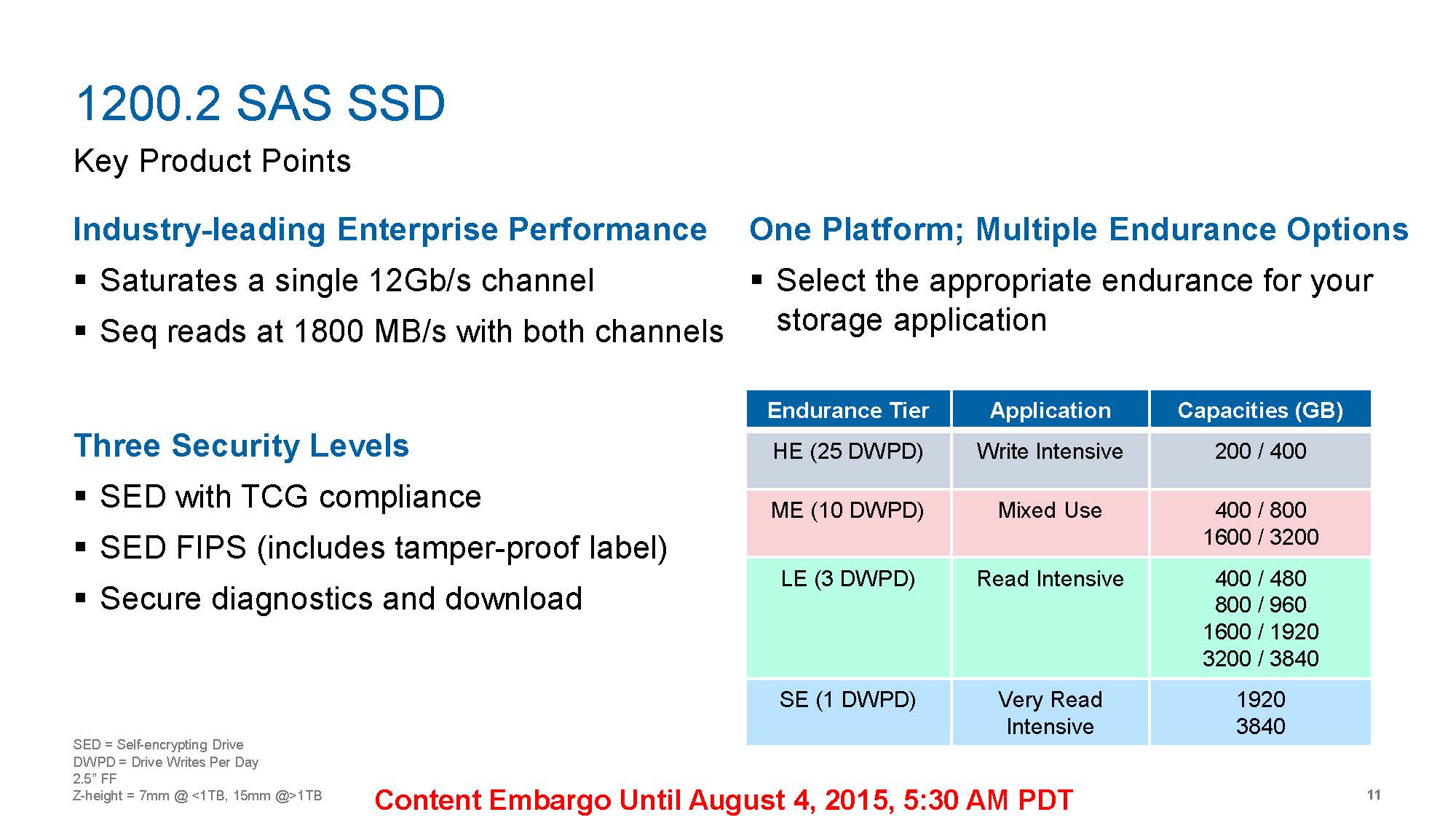

seagate-1200-2-sas-ssd-product-slides_Page_11seagate-1200-2-sas-ssd-product-slides_Page_10

The Seagate 1200.2 will be offered in four different configurations depending on the needs of the customer. Those who need drives for write intensive tasks can purchase drives rated up to 25DWPD (Drive Write Per Day) while those who need drives for read intensive tasks can purchase drives rated at only 1DWPD.

Manufacturer Seagate Seagate Seagate Seagate
Model HE ME LE SE
Controller Seagate Custom Seagate Custom Seagate Custom Seagate Custom
NAND Micron MLC Micron MLC Micron MLC Micron MLC
Capacity 200GB, 400GB 400GB, 800GB, 1600GB, 3200GB 400GB, 480GB, 800GB, 960GB, 1600GB, 1920GB, 3200GB, 3840GB 1920GB, 3840GB
Sequential Read 1800 MB/s 1800 MB/s 1750 MB/s 1700 MB/s
Sequential Write Up to 800 MB/s Up to 800 MB/s Up to 750 MB/s 500 MB/s
4K Random Read Up to 210,000 IOPS Up to 210,000 IOPS Up to 190,000 IOPS 140,000 IOPS
4K Random Write 70,000 IOPS Up to 70,000 IOPS 35,000 IOPS 15,000 IOPS
Endurance 25 DWPD 10 DWPD 3 DWPD 1 DWPD
Warranty 5 years 5 years 5 years 5 years

The drives will also be offered in a variety of capacity configurations depending on the intended use of the drives. High endurance drives rely on high overprovisoning, so the 25DWPD drive is only available in capacities up to 400GB while the low endurance drives with lower overprovisioning is able to offer capacities just under 4TB (3,840GB).

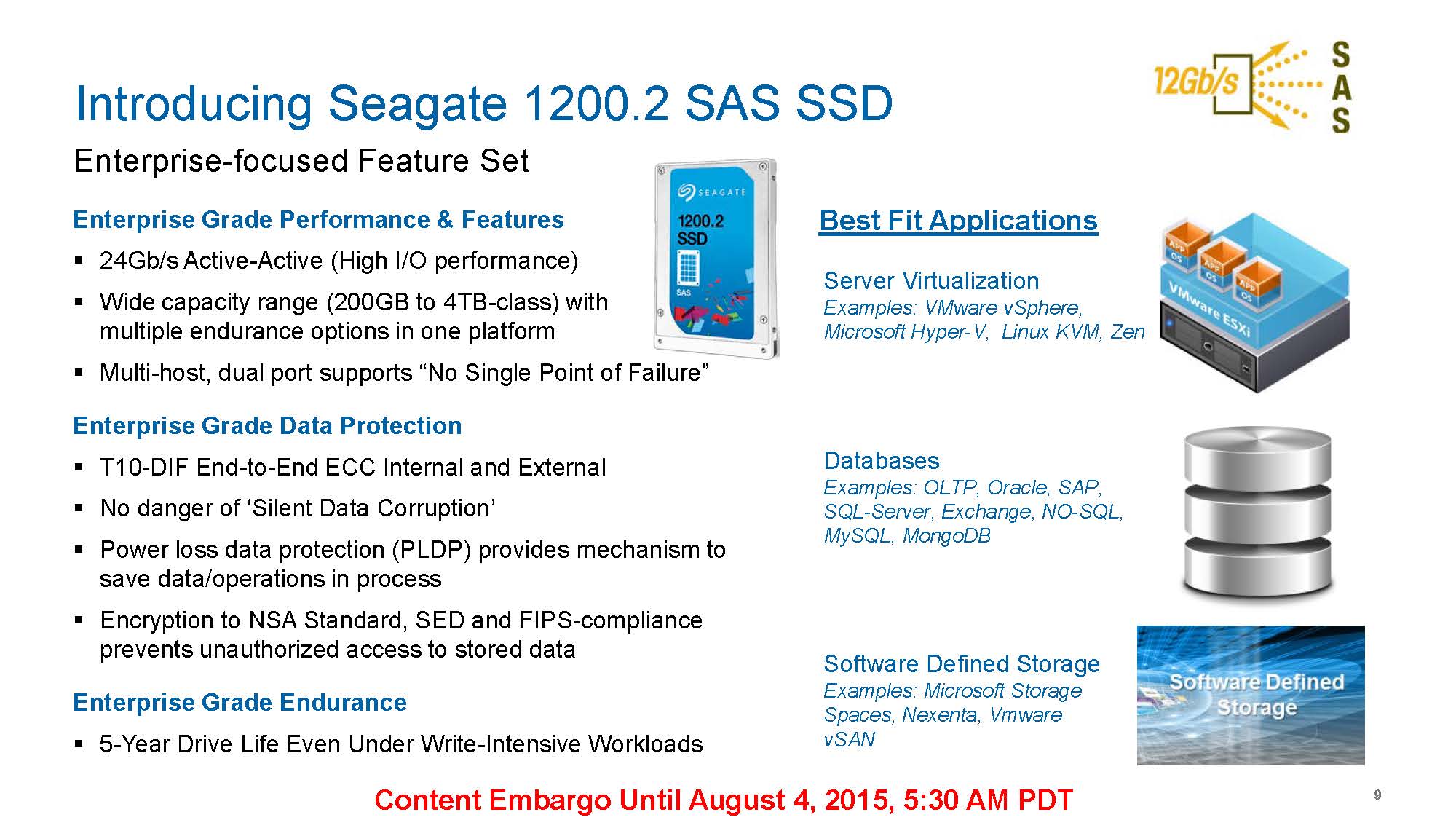

seagate-1200-2-sas-ssd-product-slides_Page_09



All drives will feature up to a 24Gb/s SAS interface (dual 12Gb/s SAS), full enterprise class power loss protection, and SED (Self Encrypting Drive) features.

We’re told that the Seagate 1200.2 will be on display at Flash Memory Summit and will be available to sample this month.



Micron S600DC Series

Since we weren’t briefed on Micron’s upcoming drive, we don’t have too much information on it aside from the press release that was issued today. According to the release, Micron will be launching the Micron S600DC Series which includes the S610DC, S630DC and the S650DC. In terms of features and hardware, it will be identical to Seagate’s 1200.2.
