Lian Li Announces the PC-V650 ATX Chassis with Side Mounted Power Supply Design

0
13

lian li pc v650 3

Press Release

Fit in Your Hardware Without the Extra Height

Lian-Li Industrial Co. Ltd, today announces an aluminum ATX supported chassis with a side mounted power supply design – PC-V650. With the power supply to be mounted on its side, the PC-V650 is shorter than most ATX chassis while still having room to install the hardware that DIY builders desire.

Instead of sitting underneath the expansion slots, a power supply up 230mm (9.0”) in length can be placed sideways parallel to the expansions slots, adding to the width of the case. With this design the 360mm (14.1”) tall and 251mm (9.8”) wide PC-V650 does not need the extra height to fit DIY builder’s preferred components.

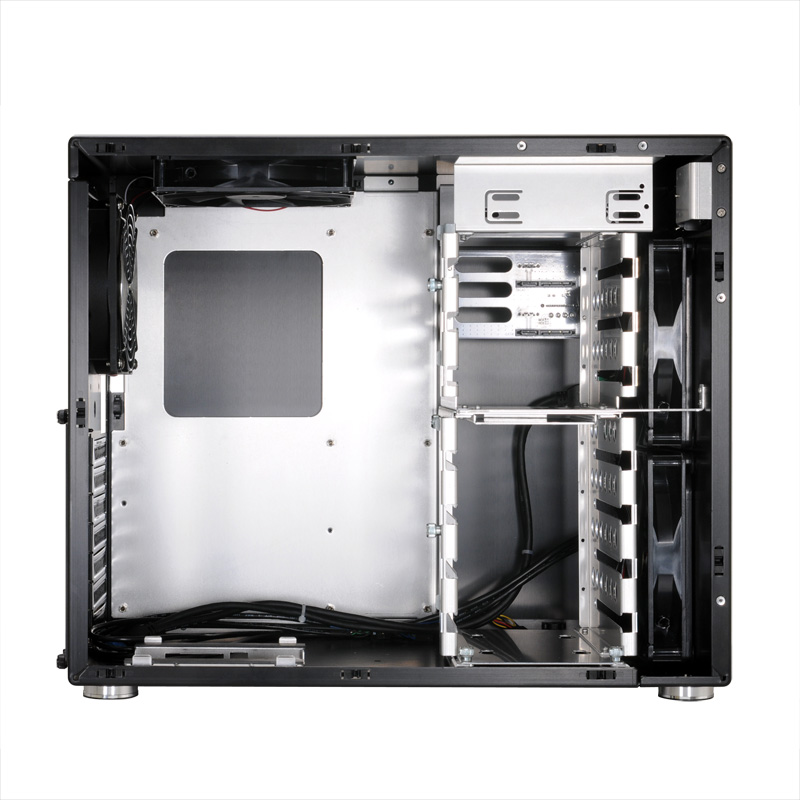

Even though the PC-V650 is shorter, up to seven 3.5” hard drives (two hot-swappable) and four 2.5” hard drives can be installed. The bottom 3.5” HDD cage, containing four 3.5” slots, is easily removed allowing expansion cards up to 370mm (14.5”) in length. Above the hard drive cages, there is space for one 5.25” drive.

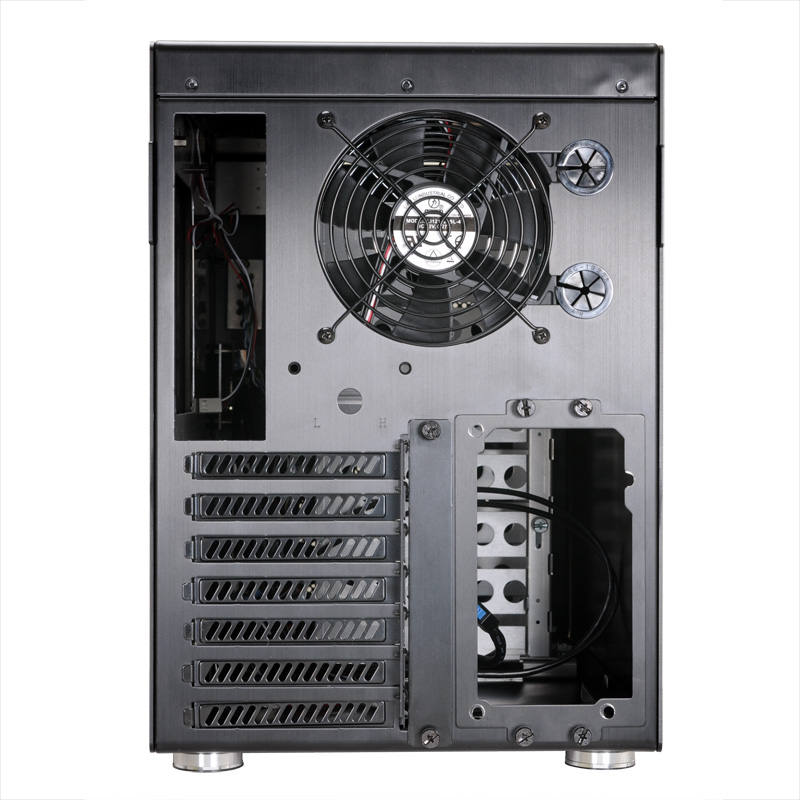

The PC-V650 does not sacrifice size for cooling ability. Two removable 140mm fans behind the front panel blow cool air directly on the hard drive cages or expansion cards if bottom cage is removed. A 140mm fan on the top and a 120mm fan in the rear of the chassis keep cool air circulating throughout the case by pulling hot air out of the chassis. For overclockers, CPU coolers up to 120mm (4.7”) fit comfortably. The PC-V650 also supports water cooling with two rubber grommet holes in the rear.

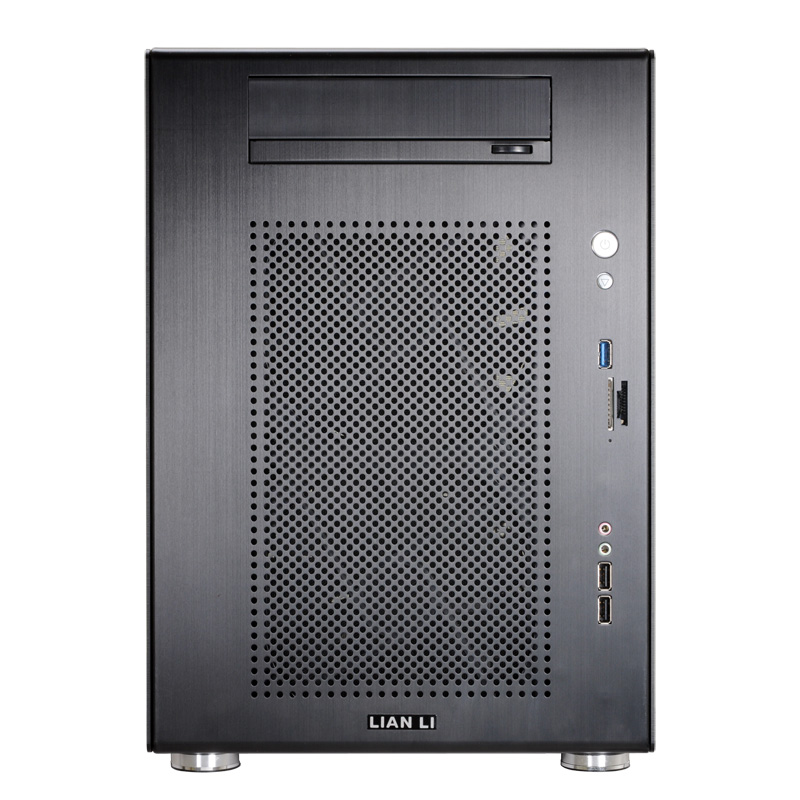

On the front I/O panel there is one USB 3.0 port, two USB 2.0 ports, HD Audio connections and a card reader.

Installations, maintenance, and upgrades are simplified thanks to the easy-to-remove pop-off side panels. Four sturdy aluminum feet with rubber bottoms reduce vibrations and give ample room between the floor and the bottom of the case.

The PC-V650 is available in two colors, black and silver, for the suggested retail price of US$199 (tax not included).

For more information on the Lian Li PC-V650, please check out the manufacturer’s website here.

Product Highlights of PC-V650

  • Supports ATX/Micro-ATX motherboards
  • Side mounted power supply design
  • Holds up to seven 3.5” hard drives
  • Seven expansion slots
  • Easy-to-remove pop-off panels
  • Two color options: black and silver
  • MSRP (tax not included): US$199
  • Available in the US and Canada at the end of August

Specifications:

Model

PC-V650

Case Type

Mini Tower Chassis

Dimensions

(W) 251mm x (H) 360mm x (D) 427mm

Front bezel Material

Aluminum

Color

Black / Silver

Side Panel

Aluminum

Body Material

Aluminum

Net Weight

5KG

5.25″ drive bay (External)

1

3.5″ drive bay (External)

None

HDD bay

3.5-Inch HDD x 7
( Hotswap x 2 ) /
2.5-Inch HDD x 4

Expansion Slot

7

Motherboard

ATX / Micro-ATX

System Fan (Front)

140mm Fan x 2

System Fan (Top)

140mm Fan x 1

System Fan (Rear)

120mm Fan x 1

I/O Ports

USB 3.0 x 1 / USB 2.0 x 2 /
HD Audio / Card Reader

Maximum Compatibility

VGA Card length: 370mm
PSU length: 230mm
CPU cooler height: 120mm
