FMS 2015: Phison Displays E7 PCIe Gen 3 x4 NVMe 1.2, S11 DRAM-Less SSD Controller

Sam ChenAugust 14, 2015

phison-e7-s11-ssd-controller-fms-2015-custom-pc-review-1

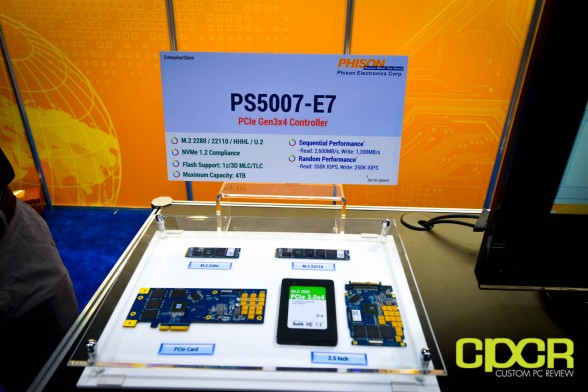

For FMS 2015, Phison showcased two upcoming controllers. The first and the most interesting is the Phison PS5007-E7 controller. Designed for the next generation of NVMe SSDs, the PS5007-E7 is a PCIe Gen3 x4 controller with full support for NVMe 1.2. As expected, it’ll support all current and upcoming flash from every vendor including 2-bit MLC (MLC), 3-bit MLC (TLC), and 3D NAND. Maximum capacity supported on the PS5007-E7 is 4TB.

Phison claims that the PS5007-E7 support sequential read/write speeds up to 2500/1300 MB/s respectively and random read/write performance of up to 350,000/250,000 IOPS. This makes the Phison PS5007-E7 significantly faster than its competitor, the Silicon Motion SM2260, which was also displayed at FMS this year.

phison-e7-s11-ssd-controller-fms-2015-custom-pc-review-2

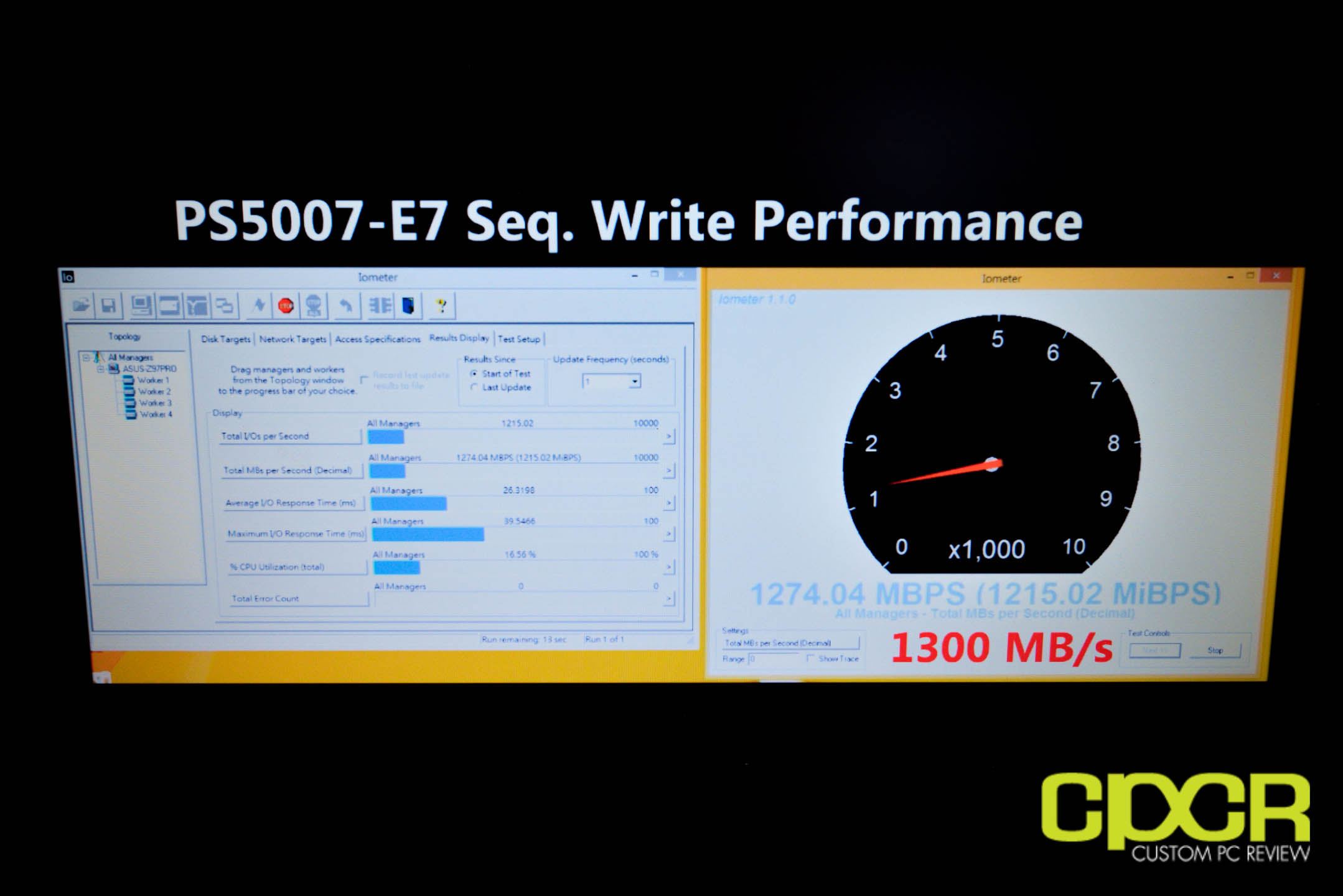

Phison had a screenshot of an IOmeter benchmarking run for the PS5007-E7. In the test, the controller was slightly short of the advertised specifications, but very close.

Phison is expecting to begin sampling the PS5007-E7 in October with mass production to begin early 2016.

phison-e7-s11-ssd-controller-fms-2015-custom-pc-review-3

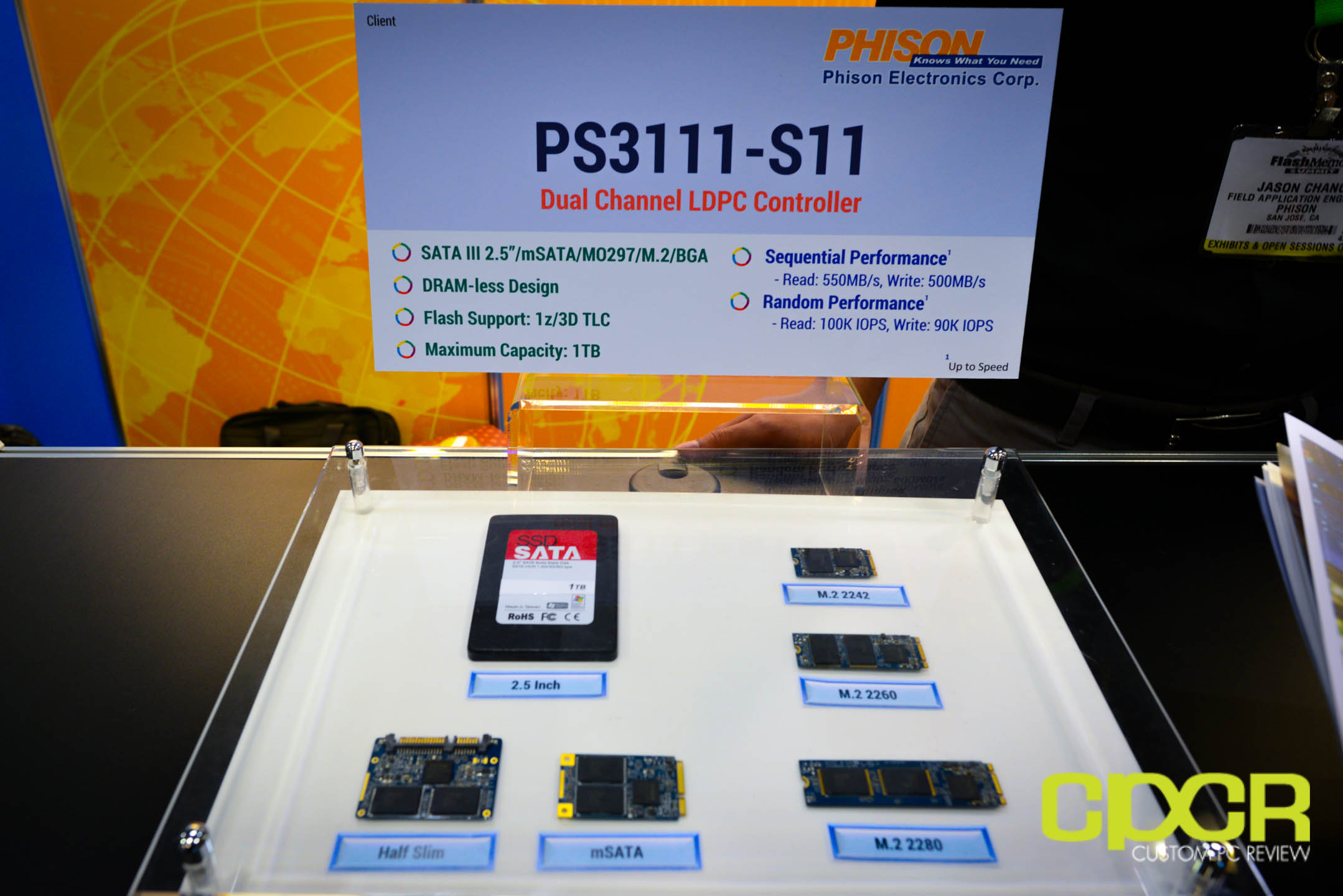

In addition to the Phison E7, Phison also displayed the PS3111-S11 which is a new SATA controller designed for the low cost, entry level market. As an entry level product, the Phison S11 features a two channel, DRAM-less design. It’ll also support more advanced LDPC ECC algorithms. This should allow vendors to very cost effectively implement TLC NAND based solutions.

Rated performance on the Phison PS3111-S11 is up to 550 MB/s sequential reads and 500 MB/s sequential writes. Random read/write performance is rated at up to 100,000/90,000 IOPS. Maximum storage capacity is up to 1TB.

The Phison PS3111-S11 is expected to enter mass production in 2H2016.
