Review: Toshiba Canvio AeroMobile 128GB Wireless SSD

Sam ChenFebruary 13, 2015

High Performance Wireless Storage

toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review-4With the increase of users with mobile devices such as smartphones and tablets, wireless storage devices have become quite popular to not only help provide additional external storage to many mobile devices, but also to bridge the gap between PCs and these devices as well.

Currently on the market, we typically see two classes of these wireless storage products – one which includes some sort of integrated storage (usually a hard drive) while the second includes a slot for some sort of external storage such as a SD card or micro SD card.

Toshiba’s latest wireless storage device, the Canvio AeroMobile Wireless SSD, is a bit different as it mates internal storage (in the form of a high performance SSD) along with a SD card slot allowing users to easily access or backup files from the SD card directly onto internal storage.

Let’s take a closer look!

Toshiba Canvio AeroMobile Wireless SSD Specifications

 Manufacturer Toshiba
Model Canvio AeroMobile Wireless SSD
Type Wireless/External Solid State Drive (SSD)
Capacity 128GB
Sequential Read Performance N/A
Sequential Write Performance N/A
Interface USB 3.0/Wireless B/G/N
Warranty 1 Year
Price Check Click Here

A Closer Look at the Toshiba Canvio AeroMobile 128GB Wireless SSD

toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review-1

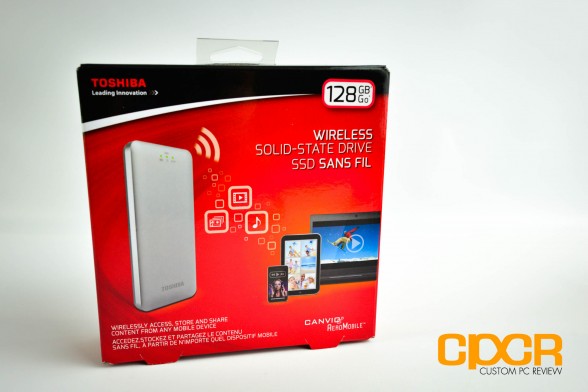

Here’s a look at the packaging for the Toshiba 128GB Canvio AeroMobile Wireless SSD.

toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review-2

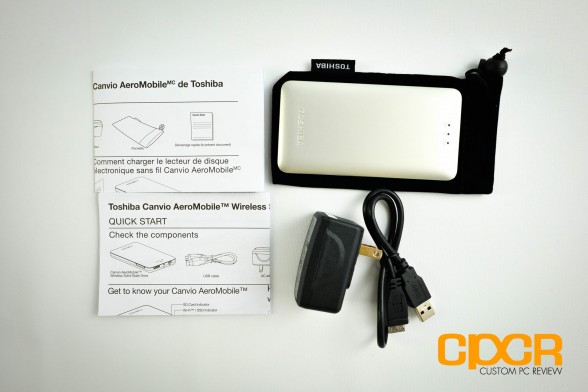

Included in the packaging, we get some documentation, a USB 3.0 cable, an AC power to USB transformer, the 128GB Canvio AeroMobile Wireless SSD, and a carrying case.

toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review-7toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review-4

Here’s a look at the Toshiba Canvio AeroMobile Wireless SSD. The unit is approximately 5″ long, 2.5″ wide, 0.5″ thick, and weighs in at around 120G. There’s 3 LEDs up top which indicate battery life, WiFi status, and SD card status.

Contrary to its appearance, the unit is constructed entirely of plastic, which unfortunately is easily susceptible to scratches and scuffs. However, this shouldn’t be too much of a problem for functionality as the Canvio AeroMobile uses a SSD, so it’ll be resistant to shocks and vibrations.

toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review-5toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review-6

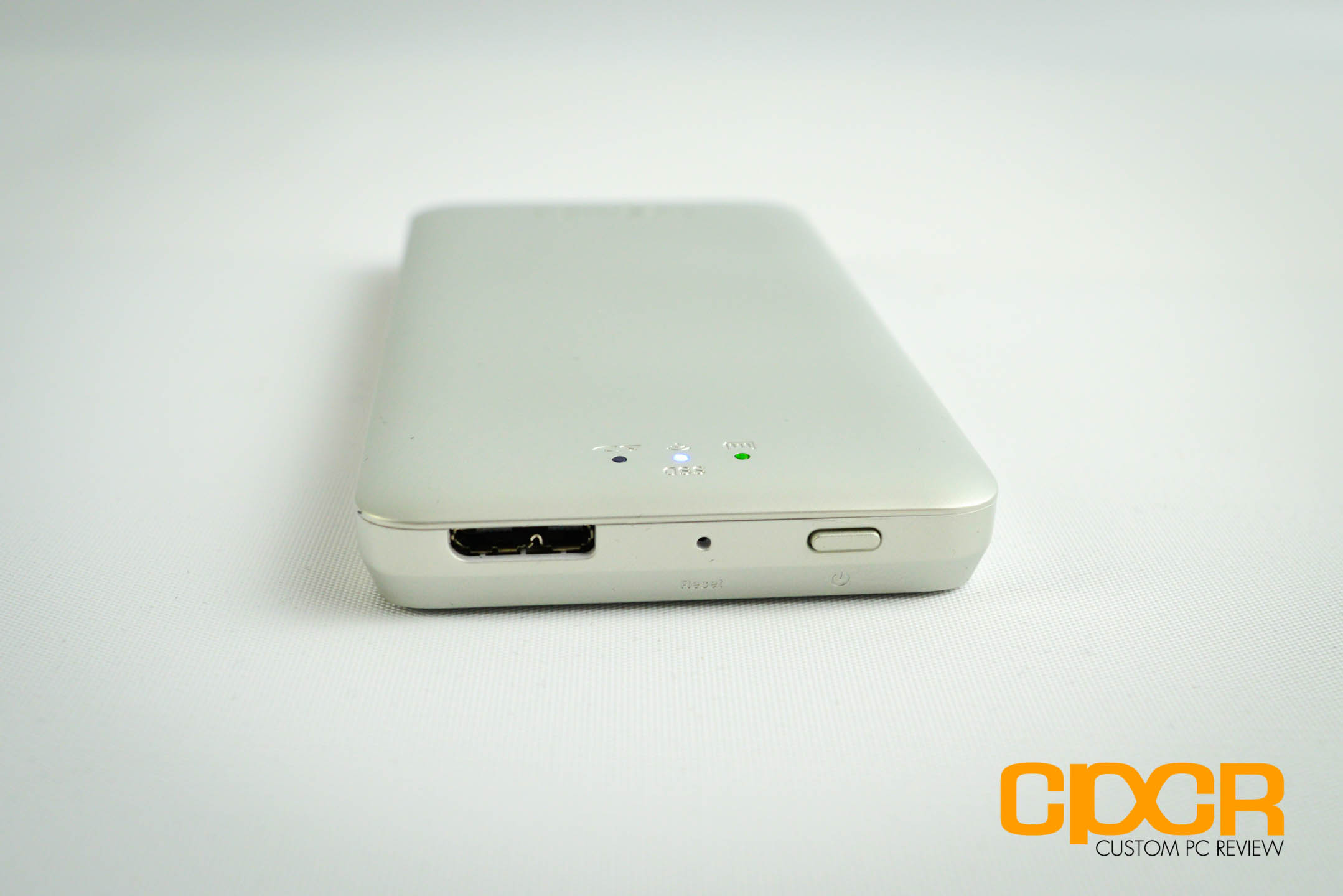

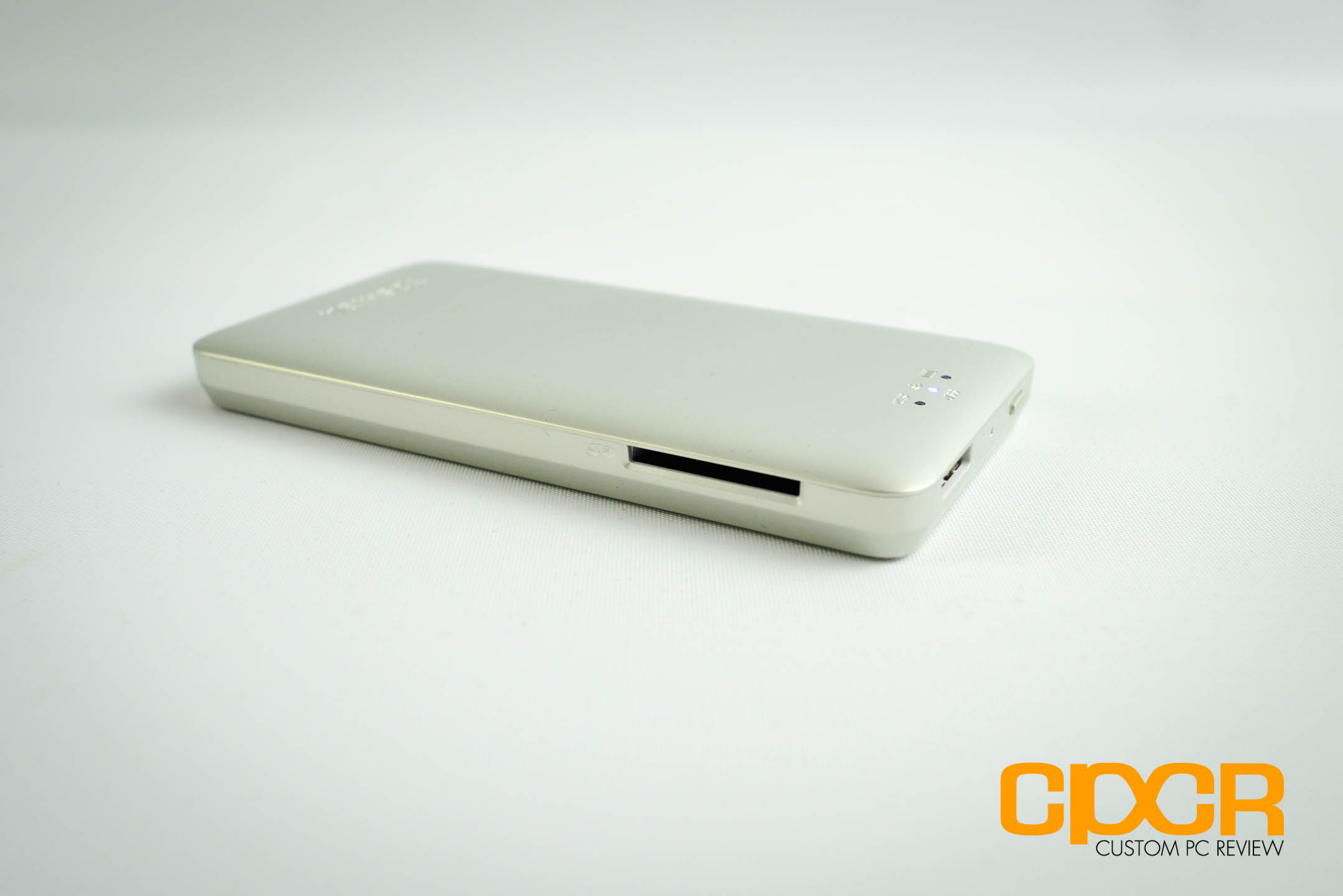

At the front of the unit we get a single power button, a reset button, and a micro USB 3.0 port. On the right side of the device, we also get a slot for a SD card as well.

Unfortunately, we weren’t able to open the unit up as this would cause irreparable damage to the plastic casing.

Toshiba Canvio AeroMobile 128GB Wireless SSD Software

iOS App

Once the Toshiba Canvio AeroMobile Wireless SSD is powered up, devices such as PCs, tablets, smartphones, etc. can be connected to the unit. Once connected, users can either access the Canvio AeroMobile by its IP (10.10.10.254 in our case), or Toshiba offers apps for both iOS and Android users. Both the browser interface and the apps are fairly similar.

ios-app-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-01ios-app-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-02ios-app-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-05

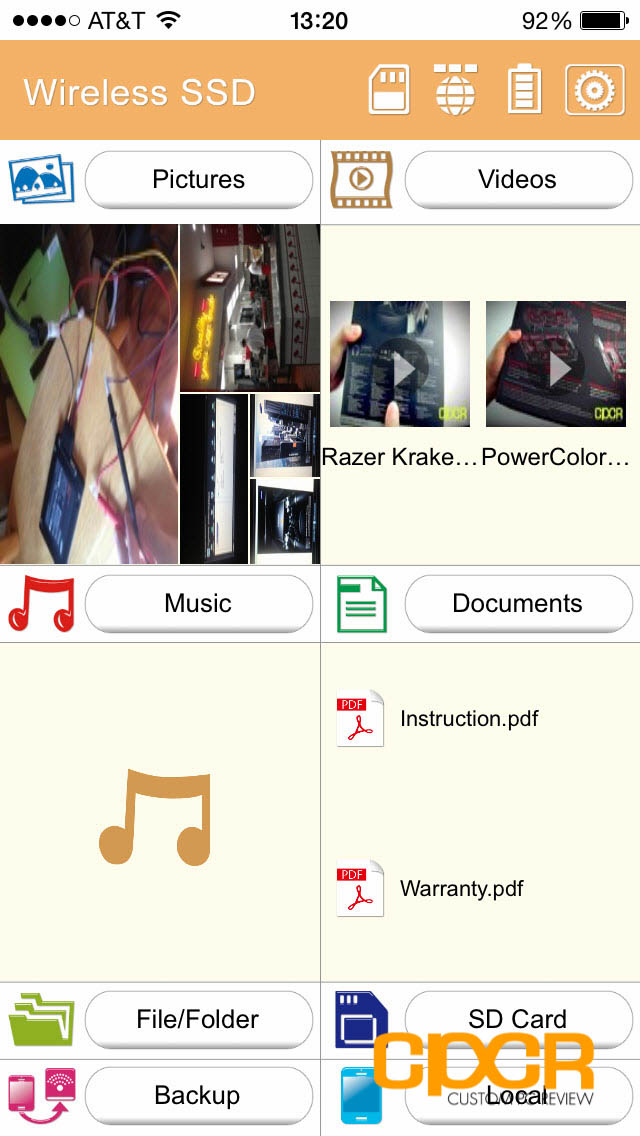

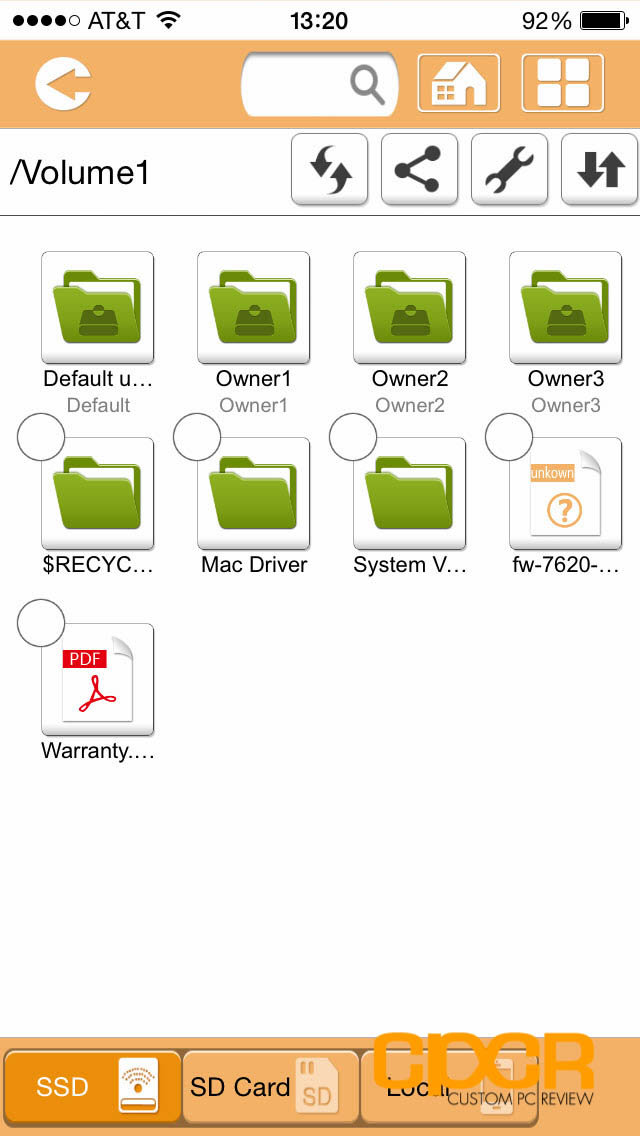

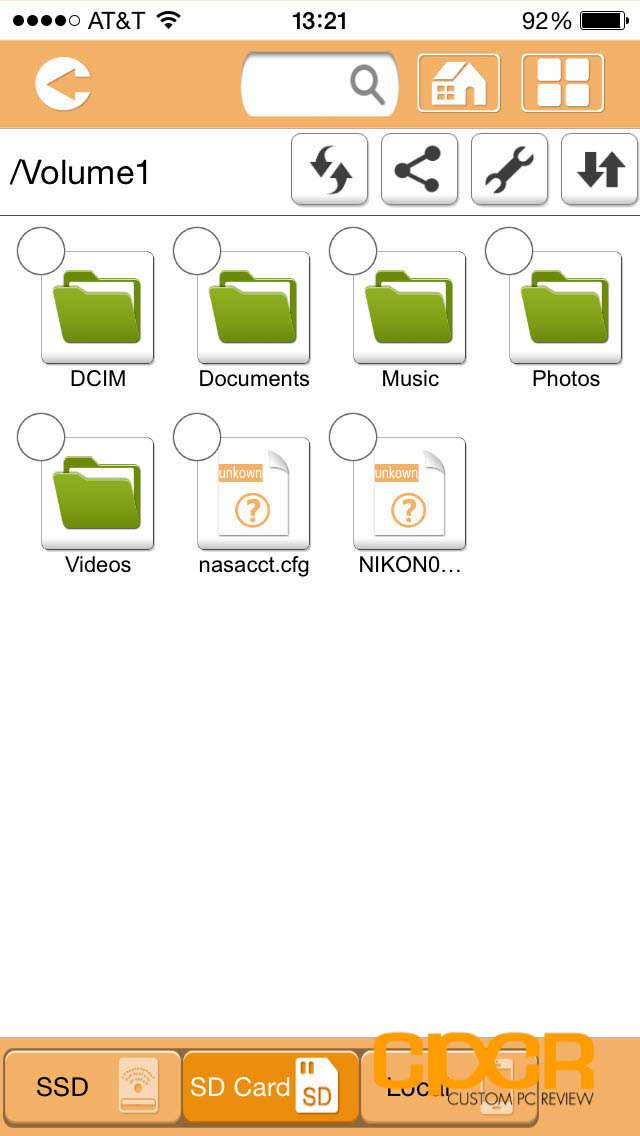

While the app isn’t the most polished of apps we’ve seen, it has enough basic functionality to automatically categorize photos, videos, documents, etc. on the wireless SSD. It’s also easy to browse files directly from the drive or SD card for those who know exactly where files are.

ios-app-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-04ios-app-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-03

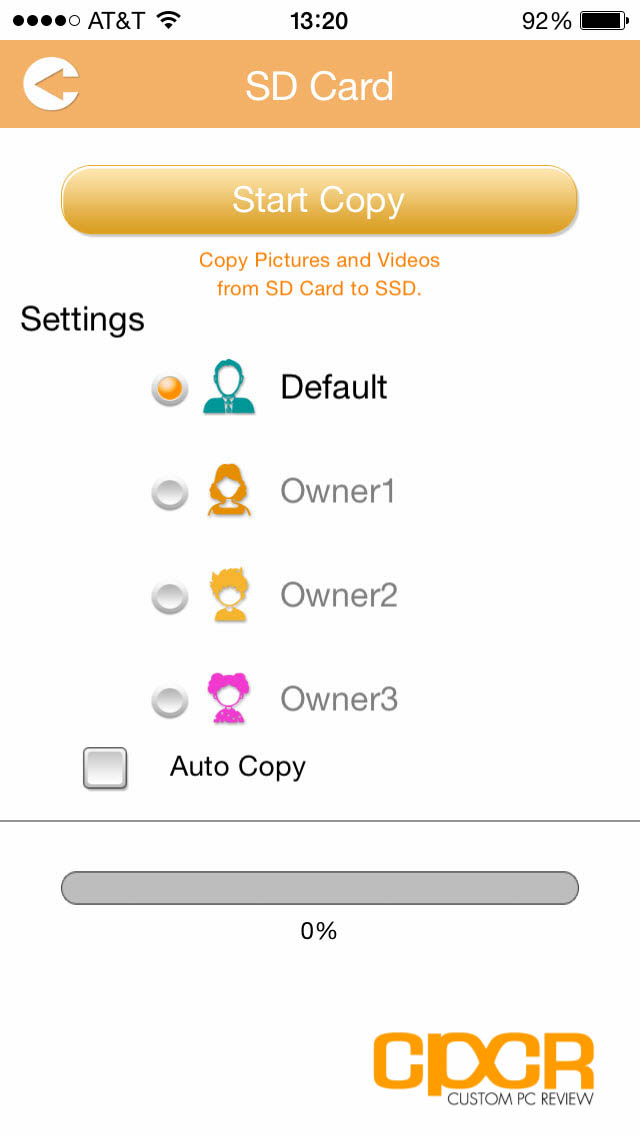

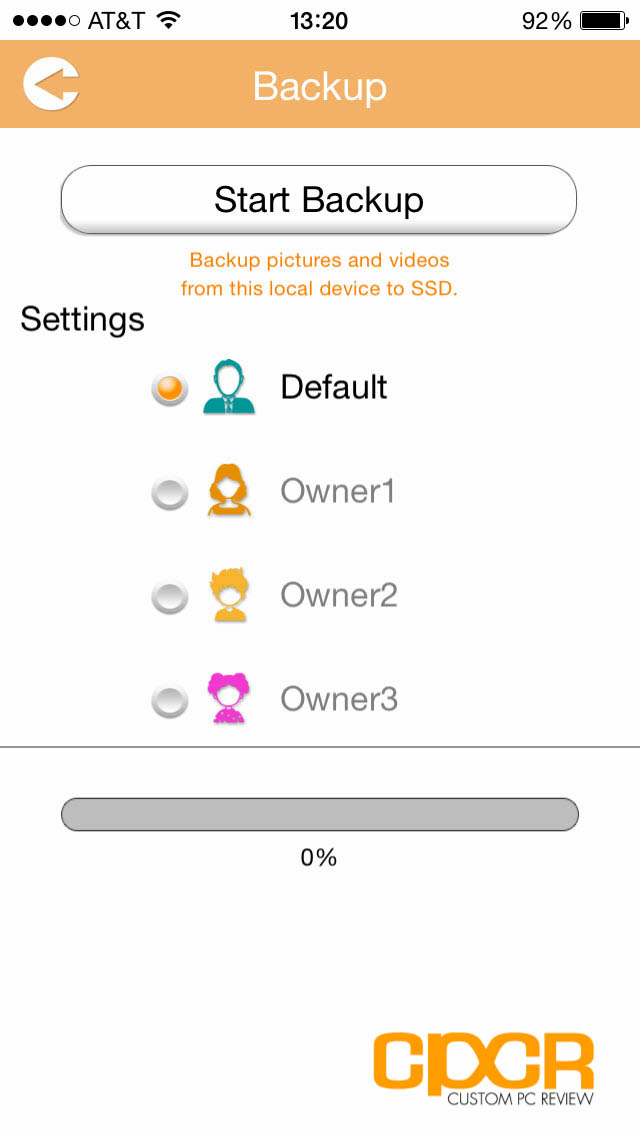

There’s also an automatic backup function which can backup files from SD cards or from the iOS device. Unfortunately, the backup process is very slow, tends to hang quite often and and took almost two hours for the process to complete on my iPhone 5.

ios-app-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-06ios-app-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-07

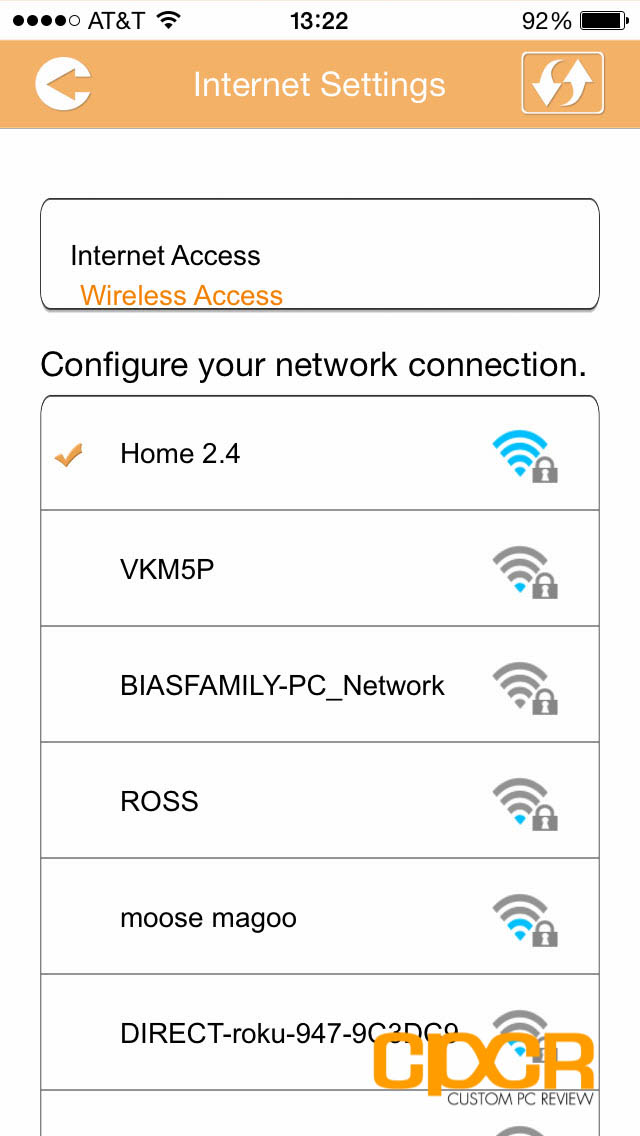

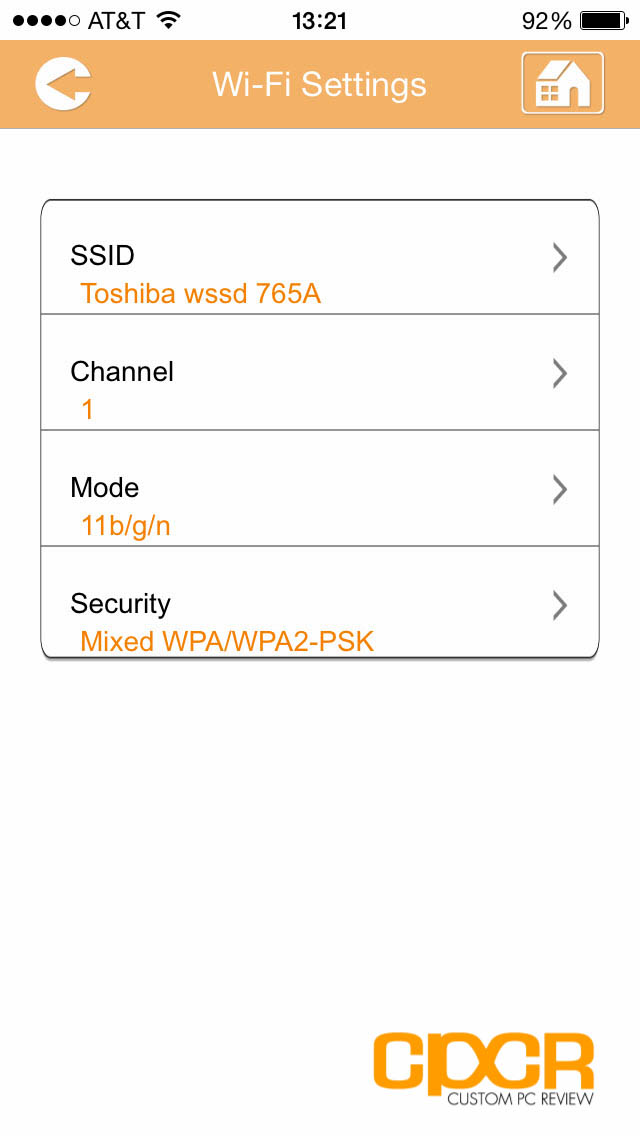

Since connecting to the Canvio AeroMobile requires disconnecting from a wireless access point/router, the Canvio AeroMobile is capable of being a wireless bridge to allow devices connected to the unit to access the internet. Additionally, basic wireless settings such as the SSID, channel, mode, and security settings needed to connect to the Canvio AeroMobile can be changed via the software as well.



Networked Drive

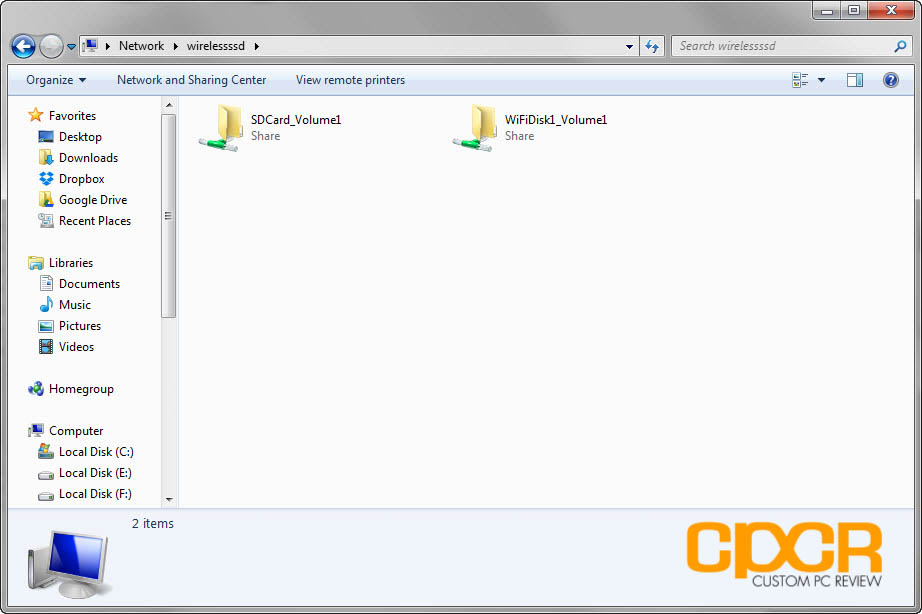

network-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-07

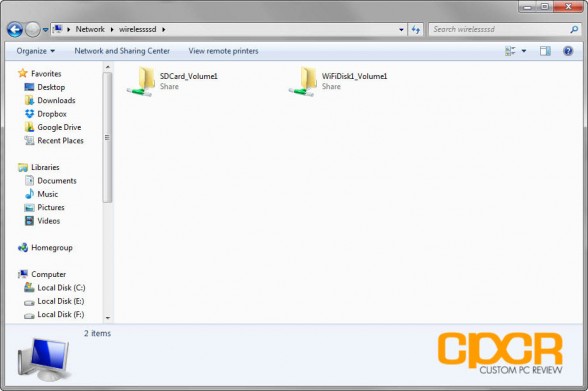

Although not necessarily “software” and not prominently advertised as a feature, the Toshiba Canvio AeroMobile Wireless SSD can also be accessed as a networked drive either by devices connected to the Canvio AeroMobile or by devices on the network the Canvio AeroMobile is connected to. This allows easy access to the data on the Canvio AeroMobile as well any SD card inserted into the device.

Haswell Test System

System CyberPowerPC Gamer Xtreme 4200
CPU Intel Core i7 4770K
Motherboard ASUS Z87-A
Memory Kingston HyperX Genesis 16GB DDR3 2133MHz
Graphics Intel HD4600 Graphics
Storage OCZ Vertex 4 256GB
Power Supply Corsair HX650
Case HSPC High Speed Tech Station
Optical Drive ASUS OEM DVD Drive
Operating System Windows 8 64 bit

Special thanks to CyberPowerPCKingston, OCZ Technology and HSPC for sponsoring our test system!



In addition to our Haswell Test System, we’ll also be using an ASUS Zenbook UX31A for wireless testing. The Zenbook UX31A includes an Intel 802.11 a/b/g/n wireless chipset.

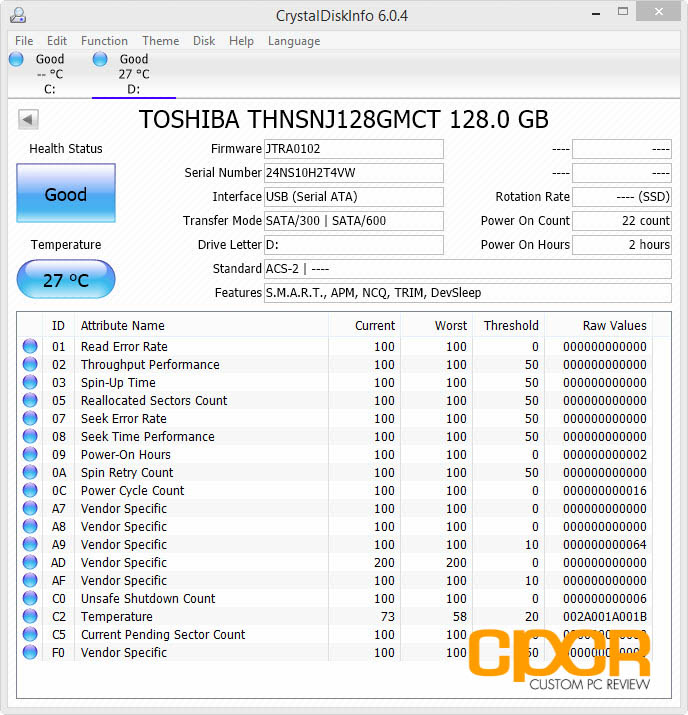

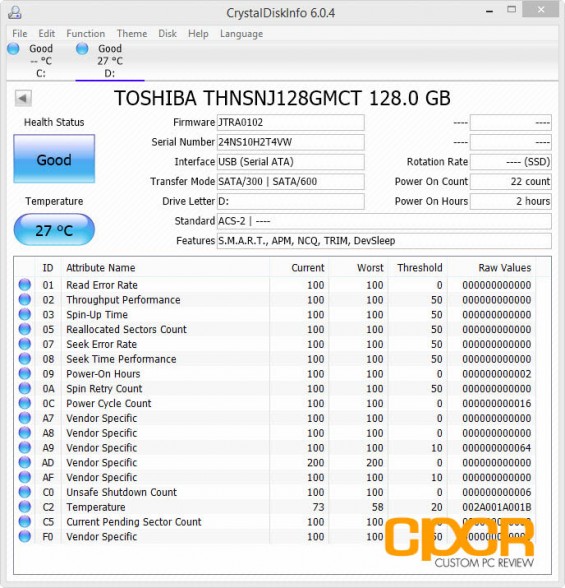

Crystal Disk Info

crystal-disk-info-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review



Toshiba Canvio AeroMobile 128GB Wireless SSD Performance

USB 3.0 Performance

When connected to a PC, the Canvio AeroMobile can be used as DAS (Direct Attached Storage). DAS performance testing is conducted with Crystal Disk Mark with a sequential data set.

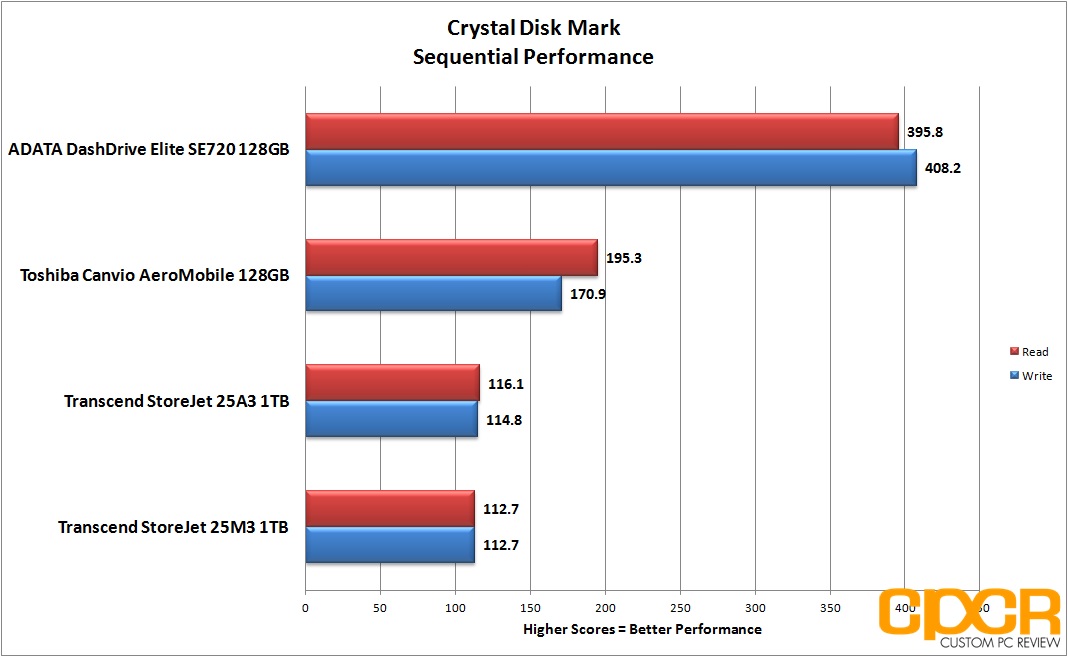

usb3-sequential-toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review

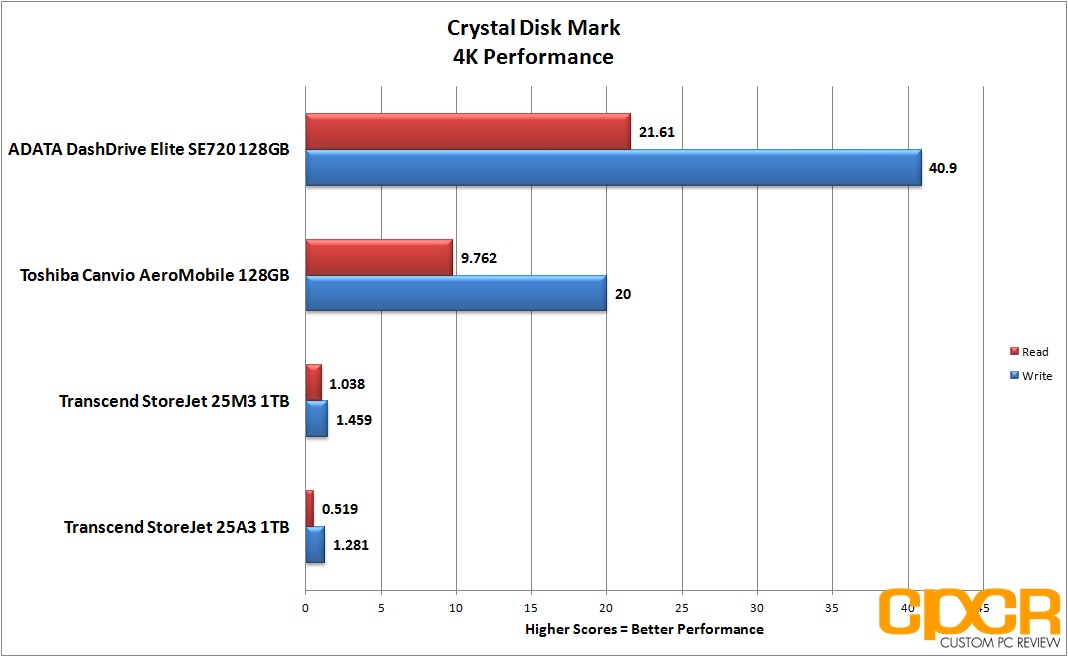

usb3-4k-toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review

When directly attached to the PC via USB 3.0, the Toshiba Canvio AeroMobile is capable of up to 195MB/s reads and 171MB/s writes. This is decent performance however, it seems like the Canvio AeroMobile does not support UASP which is why it’s significantly slower than the ADATA DashDrive Elite SE720.



Wireless Performance

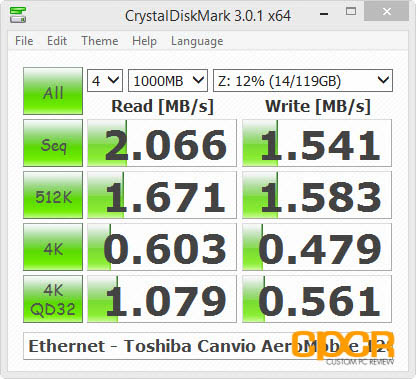

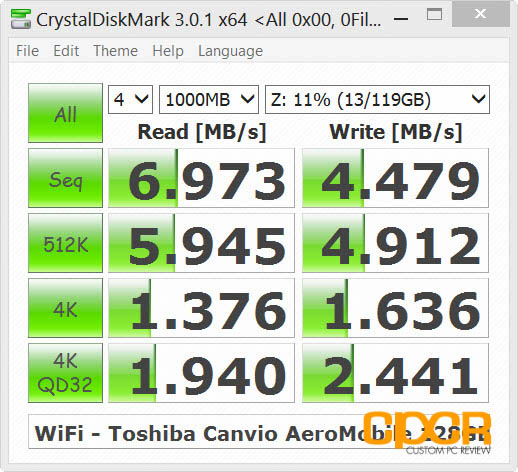

Since the Canvio AeroMobile can either be accessed by devices connected to it or by devices on the network it’s connected to, we tested both scenarios by mapping the Canvio AeroMobile as a networked drive.

wifi-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-reviewethernet-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review

It’s interesting that in the two cases, the Canvio AeroMobile performed quite differently. With a device connected to the Canvio AeroMobile via ad hoc wireless, we were able to achieve up to 7MB/s reads and 5MB/s writes – enough performance for transferring documents, streaming HD video, sharing pictures, etc. On the other hand, by connecting to the Canvio AeroMobile with a device connected to the network hosting the Canvio AeroMobile, performance is significantly weaker as we were only able to achieve 2MB/s reads and 2MB/s writes.



Wireless Bridge Performance

While connected to the Canvio AeroMobile via wireless, the Canvio AeroMobile can also act as a wireless bridge.

internet-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-2internet-toshiba-canvio-aeromobile-128gb-wireless-ssd-custom-pc-review-1

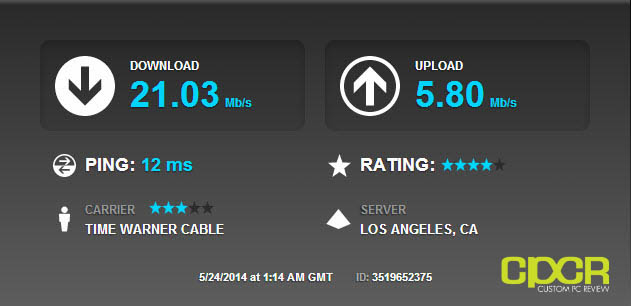

Looking at performance, bridged mode is actually quite good in comparison to other wireless storage devices we’ve tested in the past. From our testing, there doesn’t appear to be a significant impact on internet performance by using the Canvio AeroMobile as a bridge.

Toshiba Canvio AeroMobile 128GB Wireless SSD Conclusions

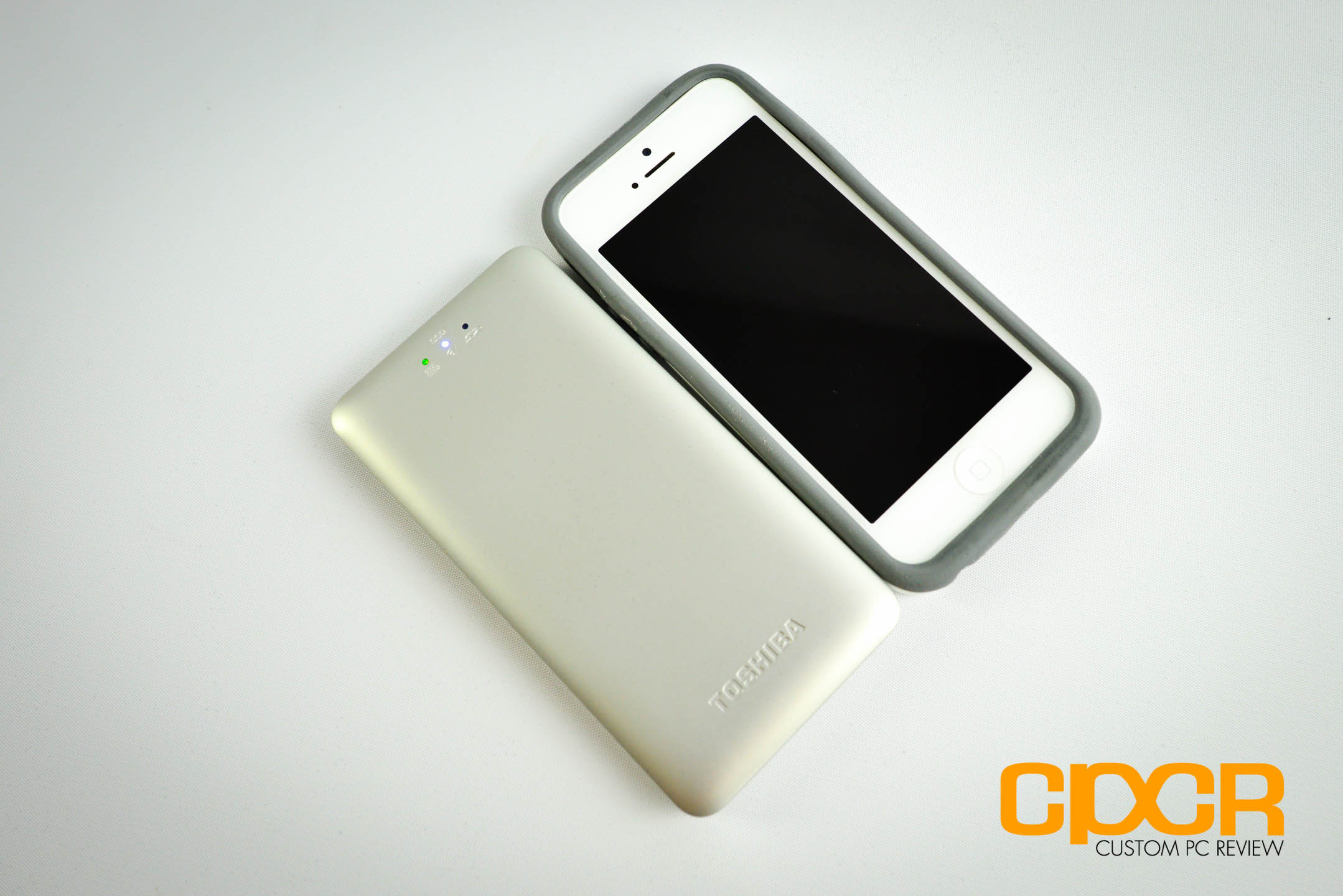

toshiba-128gb-canvio-aeromobile-wireless-ssd-custom-pc-review-10Alright, so after spending a couple weeks with the Canvio AeroMobile, let’s talk about how it fared.

As performance in direct attached storage (DAS) mode is much better than wireless mode, I generally found myself using the device more as external wired storage rather than wireless – probably because of the limitations of wireless performance more than anything. In testing with a wireless N capable laptop, we were only able to achieve ~7MB/s (~56Mbps) reads and ~5MBs (~40Mbps) writes in wireless mode while we had no problems pulling ~195MB/s reads and ~171MB/s writes in USB 3.0 wired mode. While wireless performance should be plenty for those looking to simply stream movies or pictures directly from the drive, transferring large amounts of data wirelessly to and from the drive will be quite slow.

Software on the Canvio AeroMobile is a bit rough on the edges, but it does everything you’d expect it to do. Browsing files on the drive was quite easy and getting the app to work with the drive wasn’t a problem as well. The only major problem I experienced with the app was the backup function which got stuck numerous times and took a painfully long time to complete. It did ultimately complete after a couple hours, but I’d imagine there must be a much more refined way to backup some photos and videos.

Battery life on the Canvio AeroMobile was fairly good and in testing it was able to last around 8-10 hours before running empty. While battery life is decent, Toshiba doesn’t have any sort of no activity shutoff feature, so if you accidentally leave the unit on for the night, chances are it’ll be out of battery in the morning. It’d also be nice if Toshiba could include a USB power out port on the Canvio AeroMobile as well. That way the Canvio AeroMobile can also be used as a battery pack to charge mobile devices on the go.

The Toshiba Canvio AeroMobile 128GB Wireless SSD can currently be found for ~$149.99 at various e-tailers which comes out to ~$1.17/GB. Given that most 120GB/128GB SSDs currently retail at around $0.50/GB, it’s a huge premium to pay for wireless functionality. Unfortunately, there aren’t any products on the market exactly like the Canvio AeroMobile so it doesn’t have any direct competitors just yet, but for those who don’t need the combination of wireless SSD and SD card reader, there are numerous of battery powered wireless storage devices on the market that serve similar functions to the Canvio AeroMobile such as the ADATA AE400, the SanDisk Connect, and the Corsair Voyager Air.

While it’s a is a bit expensive, a bit rough on the edges and could use a bit more performance as a SSD based product, the Toshiba Canvio AeroMobile 128GB Wireless SSD performs as advertised and is a great solution for those looking for portable, high performance wireless storage.

CPCR-Bronze

Sample provided by: Toshiba

Available at: Amazon
