Intel 3D XPoint Optane 8000p Specifications Leaked, Up to 1.6GB/s Sequential Reads, 300K IOPS Random Reads
5

Intel 3D XPoint Optane 8000p Specifications Leaked, Up to 1.6GB/s Sequential Reads, 300K IOPS Random Reads

Sam ChenOctober 15, 2016

intel-3d-xpoint-information-slide

It’s been well over a year since Intel and Micron launched 3D Xpoint, but we’ve seen very little additional information from both companies regarding the upcoming technology or its products. A recent leak from Chinese publication Benchlife however, sheds some light onto Intel’s upcoming product, named Optane, which will feature 3D Xpoint technology.

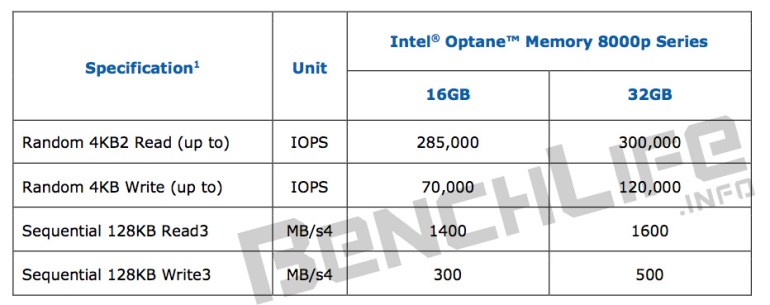

The information comes in the form of a spec sheet which details the upcoming Intel Optane Memory 8000p Series including performance and capacities.

intel-optane-xpoint-memory-8000p-leaked-specifications

Here we can see that Intel’s Optane 8000p Series will contain two drives, a 16GB model and a 32GB model. The 16GB model will be rated at performance up to 1.4GB/s sequential reads and 300MB/s sequential writes. 4K random reads are rated at up to 285K IOPS and 4K random writes are rated up to 70K IOPS. The 32GB model on the other hand is rated at up to 1.6GB/s sequential reads and 500MB/s sequential writes. 4K random reads are rated up to 300K IOPS and 4K random writes are rated up to 120K IOPS. The two drives will support the PCIe Gen 3 x2 interface and come in the M.2 2241 and M.2 2280 form factors.

While performance here appears a bit slow, it’s important to keep in mind that these are very low capacities. As 3D Xpoint dies are 128Gb (16GB), these performance figures reflect what we can see with just one or two dies.

intel-optane-xpoint-memory-8000p-leaked-roadmap

Further, here’s a look at a previously leaked roadmap for Intel’s upcoming storage products. This suggests that these Optane 8000p drives are likely to be in the mid-range compared to the PCIe Gen 3 x4 SSDs which are also expected to be revealed 4Q16 or 1Q17.

Currently no pricing information is available at this time however, Intel has previously noted that the cost of 3D Xpoint will likely be between DRAM and NAND. Depending on the accuracy of previously leaked roadmaps, we’ll likely see these 3D Xpoint based Optane drives during CES 2017.



Source: Benchlife

About The Author
Sam Chen
Hardware and Technology Enthusiast. SSD Evangelist. Editor-in-Chief.
5 Comments
  • LiveJoX
    October 15, 2016 at 4:49 am

    How does Intel XPoint compare to Samsung 960 Pro, Samsung PM961 and Samsung SM961?

    • Dan
      October 15, 2016 at 10:48 am

      Speed comparison:
      2TB Samsung 960 Pro: Read 3,500 MB/s, Write 2,100 MB/s
      1TB Samsung SM961: Read 3,200 MB/s, Write 1,800 MB/s
      1TB Samsung PM961: Read 3,000 MB/s, Write 1,150 MB/s
      1.2TB Intel 750 Series: Read 2,500 MB/s, Write 1,200 MB/s
      32GB Intel Optane: Read 1,600 MB/s, Write 500 MB/s

    • October 15, 2016 at 1:11 pm

      If these performance numbers are accurate, the Samsung 960 PRO should be faster although I’m not sure about latency on this drive. That said, there should be an even higher end Xpoint based drive on the way.

  • Dan
    October 15, 2016 at 10:32 am

    Hi Sam, Nice article! I noticed an error:”4K random reads are rated at up to 285K IOPS and 4K random reads are rated up to 70K IOPS.” I think you meant to say, “and 4K random writes are rated up to 70K IOPS.”
