Not long ago, we wrote a guide on How to Overclock a Monitor with a Nvidia Graphics Card so naturally, the AMD version was on its way.

Today, it has arrived. In this guide, I’ll be showing you how to easily overclock your monitor using an AMD graphics card.



Overclock Your Monitor

Step 1

Download Custom Resolution Utility (CRU) here. This software will be needed to set a custom refresh rate for the monitor.



Step 2

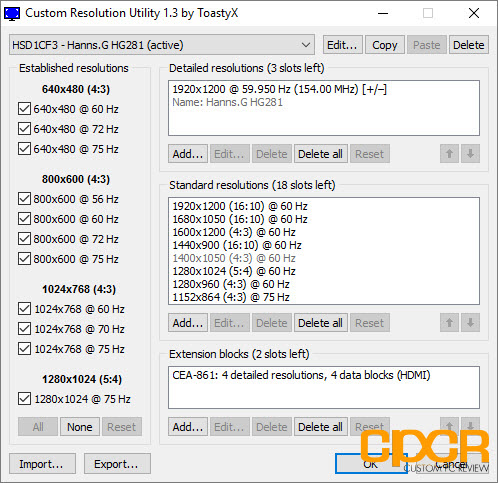

Unzip and extract the zip file containing CRU to the desktop. Launch the CRU utility. You should be greeted to something like this.

overclock monitor using amd graphics card custom pc review 09



Step 3

Click on the Add… button under the Detailed resolutions section.

overclock monitor using amd graphics card custom pc review 08

From here, simply go down to the box containing the refresh rate and modify the entry to be 1Hz higher than the default. So, if your default is 60Hz, go ahead an add 61Hz and click OK.



Step 4

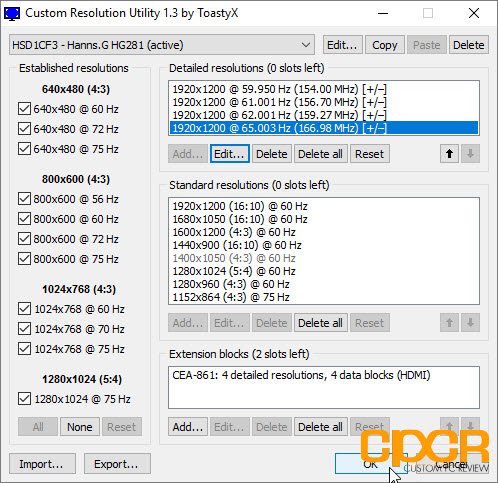

Go ahead and add three additional entries into the Detailed resolutions section. In order to speed up the process, I have an additional entry which jumps 5Hz from the default, but the safer way to do it is to simply go up 1Hz at a time. Once all the entries are added, go ahead click OK and restart your system.

overclock monitor using amd graphics card custom pc review 07



Step 5

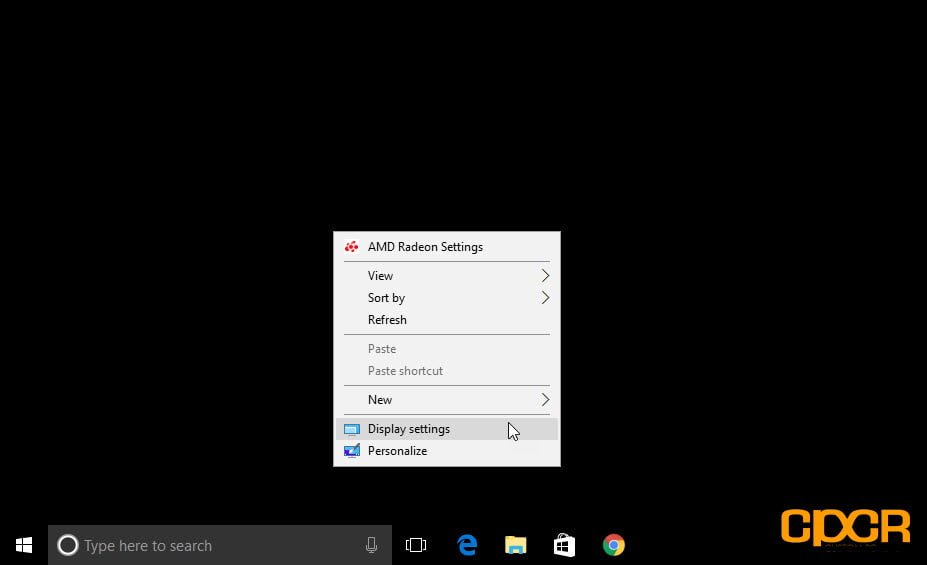

Once the system has restarted, right click anywhere on the desktop and click on Display Settings.

overclock monitor using amd graphics card custom pc review 06



Step 6

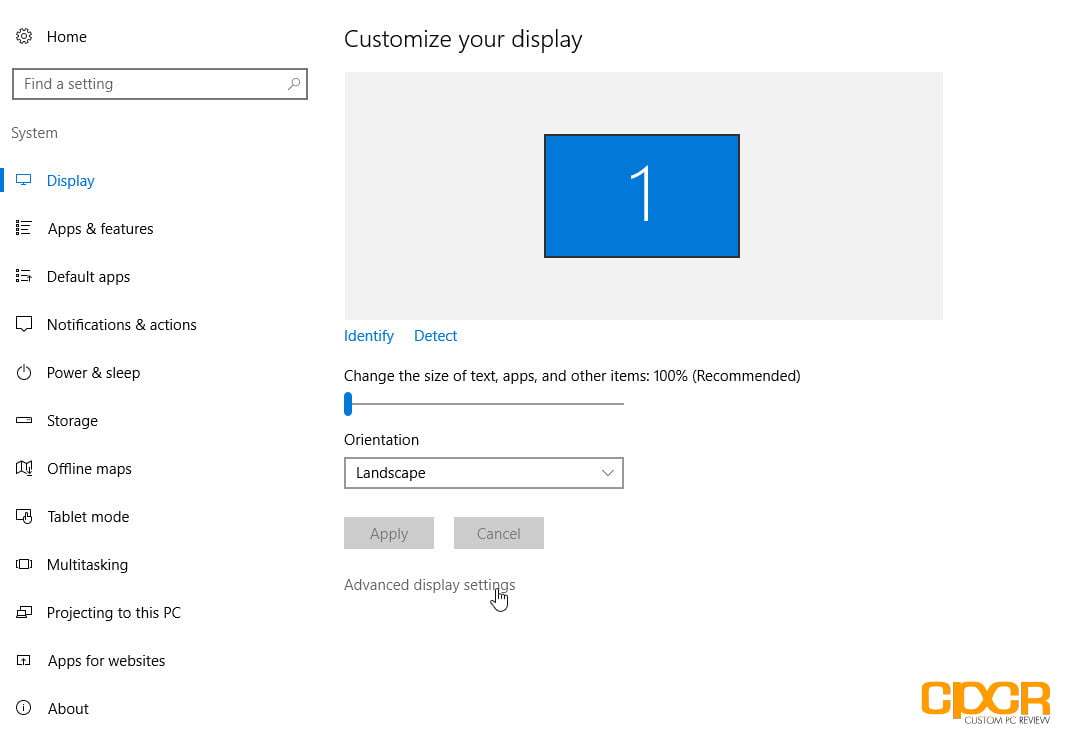

From Display Settings, click on Advanced display settings.

overclock monitor using amd graphics card custom pc review 05



Step 7

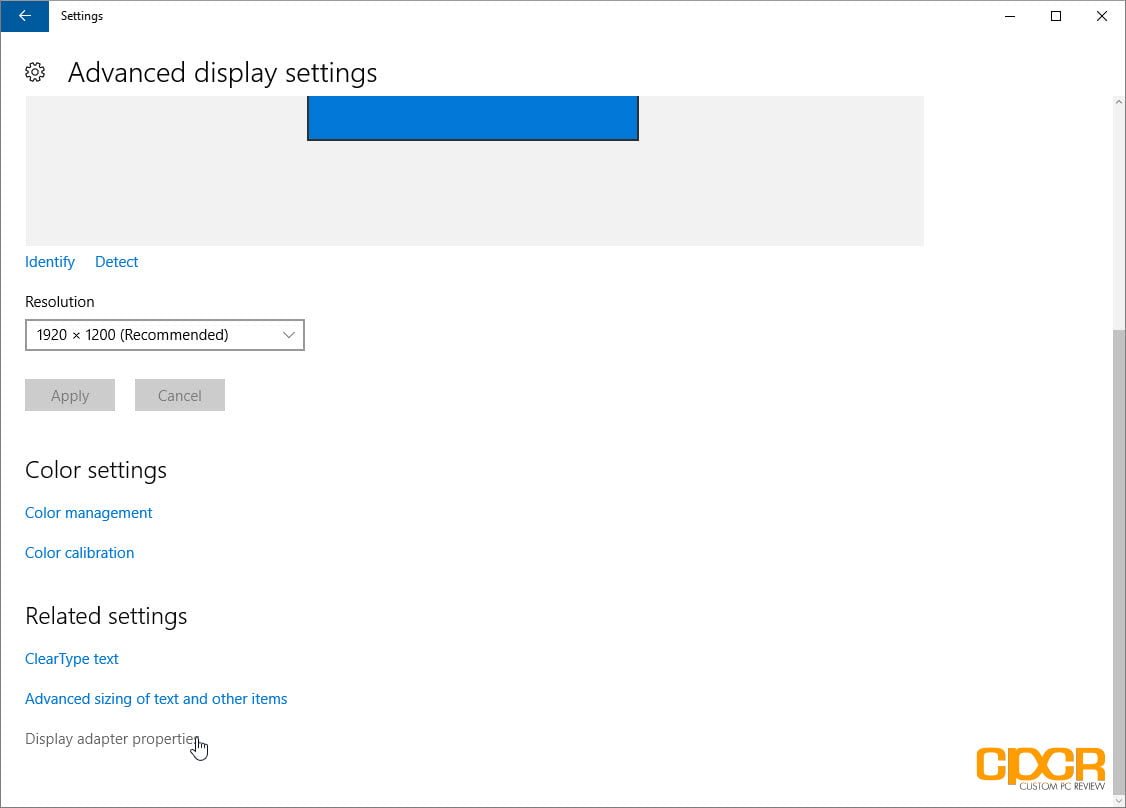

In Advanced Display Settings, scroll down and click on Display Adapter Properties.

overclock monitor using amd graphics card custom pc review 04



Step 8

Under Display Adapter Properties, click on the Monitor tab.

overclock monitor using amd graphics card custom pc review 03



Step 9

Click on the drop down box under Screen Refresh Rate and choose a refresh rate beyond 60Hz or whatever the native maximum refresh rate is.

overclock monitor using amd graphics card custom pc review 02



Step 10

Once the overclocked refresh rate is selected, go ahead and click on Apply to apply the new refresh rate.

overclock monitor using amd graphics card custom pc review 01



Step 11

From here, if you see a blank screen, you’ve gone too far. However, if you wait a couple seconds, it’ll revert itself to its original settings. At this point, just scale down your overclock a couple Hz and try again.

If you get a picture again with the dialog box asking you if you want to keep the display settings, go ahead and click on Keep Changes and you’re done!

overclock monitor using amd graphics card custom pc review 00

1 COMMENT

  1. The AMD Radeon drivers let me overclock to 81Hz without even needing CRU. Also just overclocking isn’t remotely enough. If your display is skipping frames then the Overclock is worthless. You need to dial in both the highest Hz WITHOUT any frame skipping. Test your frame skipping by going to the “UFO Test: Frame Skipping Checker” (Google it), and then finding a guide (and your digital camera) to help you understand how to use it.
