A number of companies showed off new technologies during LSI’s AIS 2012, but one of the companies whose products really stood out to me was  Everspin Technologies with their ST-MRAM. At their AIS booth, Everspin Technologies demonstrated the first ever commercialized 64 Mb DDR3 ST-MRAM (Spin Torque – Magnetoresistive Random Access Memory). ST-MRAM is a newly developed MRAM technology that takes advantage of “Spin Torque” technology which uses the electron’s spin to record the state of the RAM.

Why is this important? Well, let me try to explain how this innovative technology works and why it could revolutionize computers of the future. Traditional MRAM relies on the use of a high current electric field running above a free layer in order to utilize the magnetic field (right hand rule) to change the state of the “free layer”. The problem with this is that it’s difficult to scale due to the constant and strong magnetic field. With ST-MRAM, Everspin Technologies instead implemented a MTJ (Magnetic Tunnel Junction) that is composed of a dielectric tunnel barrier sandwiched between two magnetic layers. This makes it a lot easier to switch the “free layer” states with less voltage and a smaller resulting magnetic field.

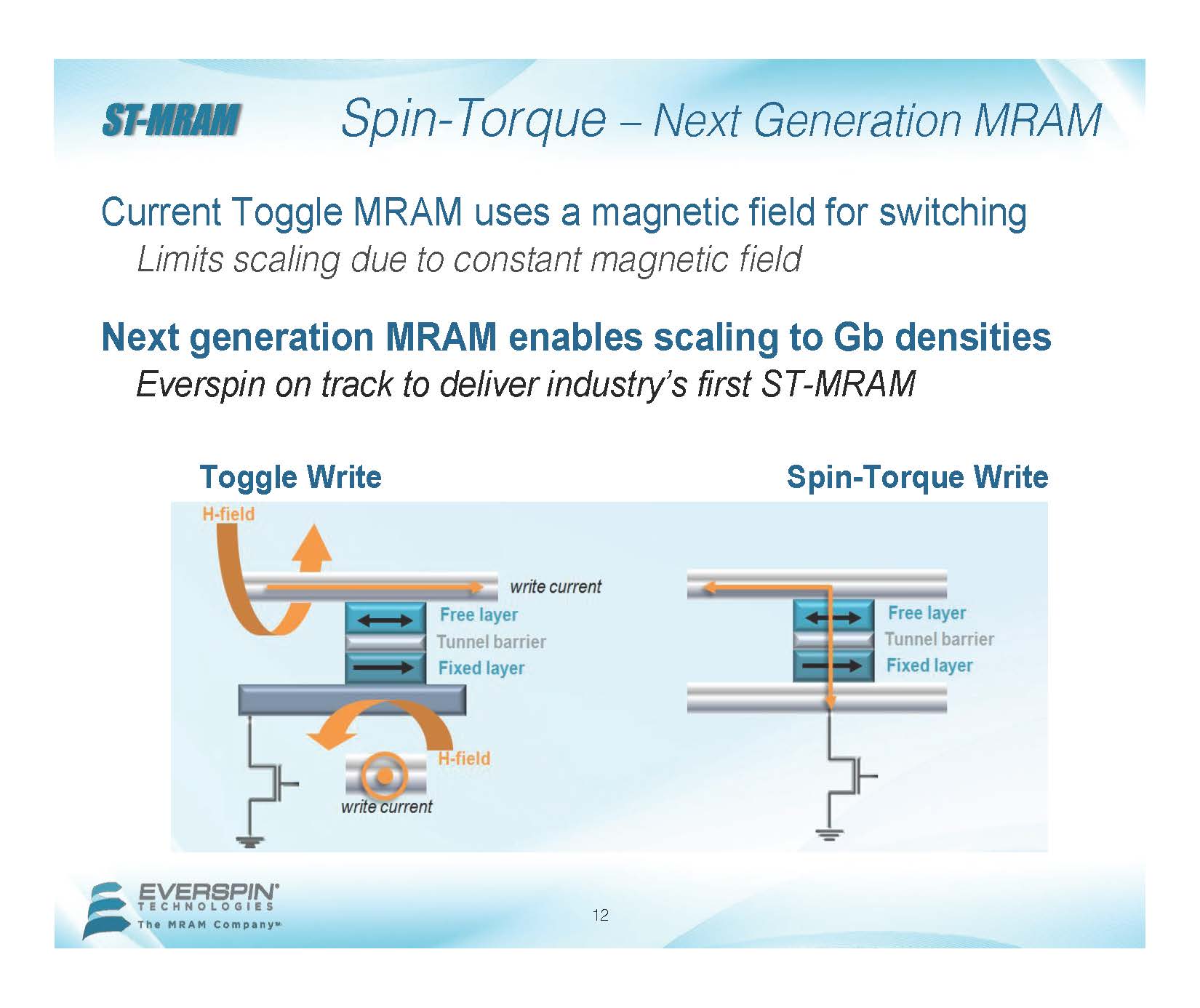

Since I went into a bit on the free and fixed layers, let’s talk a little about that. The bottom most layer is composed of a magnetic thin film that is “fixed” so that the polarity will always be pointing in the same direction. The top most magnetic layer on the other hand, is a “free layer” used to set the state of the RAM to a one or a zero by controlling the spin of the electrons to either go in the same direction of the “fixed” layer of go in the opposite direction. For the visual people out there, check out the diagram above. It’ll all make sense. If not, well it’s just simply better.

Why is this important? Well the first major advantage that “spin torque” brings to the table is that it provides non-volatility and excellent endurance. Currently, the one of the best applications is at the enterprise storage level where companies can’t afford to lose data from their servers. In case of a power outage current servers currently use a combination of batteries and supercaps (super capacitors) to temporarily store the date and hopefully have enough time to get it out of a volatile DRAM cache. The issue with this is that capacitors and batteries will fail requiring maintenance and support while not always guaranteeing the safety of your data. ST-MRAM with its non-volatile properties on the other hand makes wont have either the maintenance issues nor the reliability issues.

Another advantage that the ST-MRAM has is that it actually requires less current to toggle between states, which allows for more transistors to be placed in a chip essentially allowing for more storage space.  At the moment the pricing of this type of RAM is quite high and would only be worth it for large enterprises. However with advancements in technology which would possibly reduce costs I can foresee a future where ST-MRAM will be present our every day consumer electronics.

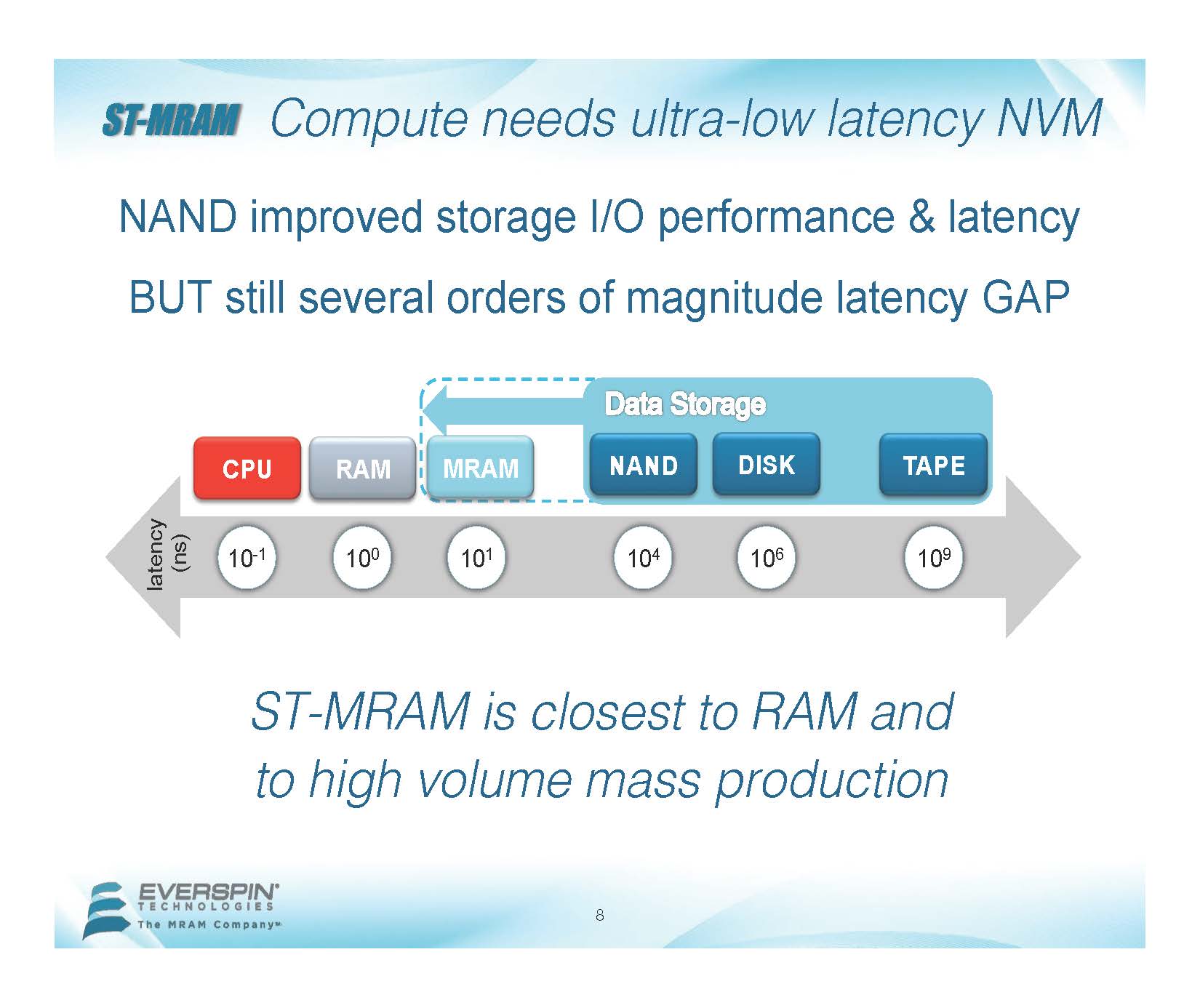

Since most of us aren’t enterprise customers, the significance of ST-MRAM is simply the fact that it can potentially become the successor to DRAM or NAND flash in the future. While ST-MRAM is indeed an order of magnitude slower than current generation DDR3 DRAM, it’s still quite fast and is non-volatile, which means significant energy savings when used in mobile applications. As a replacement for NAND, it’s pretty obvious as well since ST-MRAM is many orders of magnitudes faster than NAND flash yet still retains the non-volatility of NAND flash. With NAND flash becoming too dense at the sub-10nm level, ST-MRAM has the potential to become the choice for the future.

Currently, pricing on Everspin’s ST-MRAM isn’t cheap and we’re told it’ll cost 100x higher cost per bit vs current generation DDR3 DRAM. In terms of availability, ST-MRAM is already in production and is already available to select partners with more details on broad availability to come in 2013. We’re definitely keeping our eyes on this one! Hit the jump below for the full press release.

[section label=2. Press Release]

Press Release

Everspin debuts first Spin-Torque MRAM for high performance storage systems

MRAM leader sampling 64Mb DDR3 ST-MRAM; engaging with partners to prepare design and manufacturing ecosystems

Everspin Technologies leads the industry in commercializing the first Spin-Torque Magnetoresistive RAM (ST-MRAM), a new type of high performance and ultra-low latency memory that is expected to transform storage architecture and help drive the continuous evolution of Moore’s Law.

ST-MRAM is a performance-optimized Storage Class Memory (SCM) that bridges the role of today’s conventional memory with the demands of tomorrow’s storage systems by providing non-volatility, high endurance and ultra-low latency. The 64Mb device is the first product in Everspin’s ST-MRAM roadmap that is planned to scale to gigabit density memories with faster speeds. Select customers are now evaluating samples of Everspin’s EMD3D064M 64Mb DDR3 ST-MRAM.

“The properties of ST-MRAM are particularly appealing to the enterprise SSD market because of its ability to enhance and complement flash memory technology,” said Joseph Unsworth, research vice president at Gartner. “The commercialization of this technology is an important industry milestone that should continue to drive SSD proliferation in data center and in-memory computing architectures.”

The first semiconductor memory that combines the speed and endurance of DRAM with the non-volatility of Flash, ST-MRAM gives designers of high performance storage systems the ability to achieve ultra low latency, increase reliability with high cycling endurance and protect data in the event of power loss. One example of potential use is in the area of cloud storage—even as more users and content are added, faster and consistent data storage access is a necessity.

“Existing memory technologies face significant challenges to deliver the right balance of performance, power consumption, and reliability as they scale to smaller process geometries,” said Jeff Janukowicz, research director for Solid State Storage and Enabling Technologies at IDC. “The commercialization of the first 64Mb Spin-Torque MRAM is an industry milestone along the path to broader use of more varied non-volatile memory technologies to improve storage device reliability, and to increase performance.”

Everspin’s proprietary Spin-Torque technology uses a spin-polarized current for switching. Data is stored as a magnetic state versus an electronic charge, providing a non-volatile memory bit that does not suffer wear-out or data retention issues associated with Flash technology. The EMD3D064M 64Mb STMRAM is functionally compatible with the industry standard JEDEC specification for the DDR3 interface, which delivers up to 1600 million transfers per second per I/O, translating to memory bandwidth of up to 3.2 GBytes/second at nanosecond class latency. The product is offered in an industry standard WBGA package aligned with the DDR3 standard.

“Data has transcended from being a buzzword to where it’s an invaluable commodity. At the heart of the data revolution is the issue of how to store, manage and retain it securely, efficiently and cost-effectively. Our first ST-MRAM product has the potential to carry today’s high performance storage systems to greater heights,” said Phill LoPresti, president and CEO of Everspin Technologies. “We are collaborating with select customers to allow them to evaluate and take advantage of Spin-Torque MRAM technology sooner and to gather feedback that will help us finalize our 64Mb DDR3 ST-MRAM for production.”

ST-MRAM gives system designers the benefit of persistent, high endurance storage or memory for applications that demand better reliability and that need the performance boost of DDR3 speed. The 64Mb density MRAM provides an ideal entry point for non-volatile buffer and cache memory in solid state and RAID storage systems as well as storage appliances. The 64Mb device will complement existing low cost memory technologies, reducing overall system cost and complexity.

ST-MRAM ecosystem

Everspin is manufacturing ST-MRAM on its 200mm production line in Chandler, Arizona and is collaborating with industry leaders to establish 300mm MRAM tools and additional fab capacity. Everspin is also working with design partners to ensure that the required tools and support are in place to drive the rapid adoption of ST-MRAM, including the necessary memory controllers, memory modules (DIMMs) and evaluation platforms.


Everspin is shipping working samples of the EMD3D064M 64Mb DDR3 STMRAM to select customers and will announce details on broad availability in 2013. In addition, Everspin is offering ST-MRAM non-volatile random access memory modules in industry standard configurations, and PCIe FPGA platforms are available now allowing customers to start designs.
